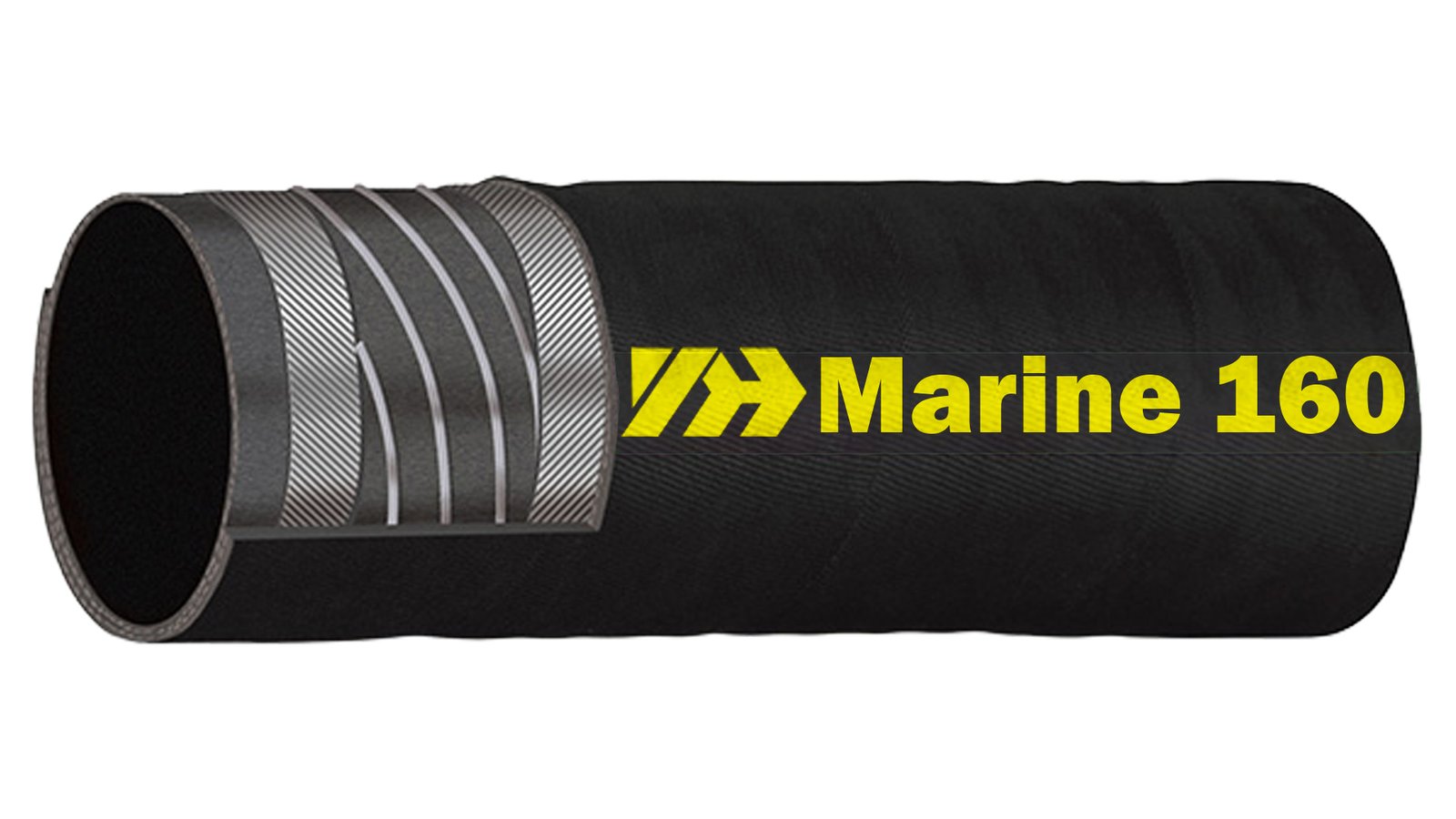

TUBE:
Black, smooth, NBR rubber compound
REINFORCEMENT:
Four or six steel wire spirals.
COVER:
Black, corrugated, cloth impression CR rubber compound, self extinguishing, resistant to heat, fuels, and weather
TEMPERATURE RANGE:
-30°C to +120°C (22°F to +248°F).
KEY FEATURES:
• Durable construction for fuel, water, and exhaust systems
• Resistant to saltwater, heat, UV, and vibration
• Reinforced with synthetic plies and steel wire for high strength
• Flexible and corrosion-resistant rubber compounds
• Meets ISO 13363 and RINA marine standards
APPLICATION & FLUIDS:
Suction and delivery hose for cooling water and exhaust gasses, for marine engines installed on leisure boats
WORKING PRESSURE:
Maximum working pressures are based on 2:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-M160-96 | -96 | 152 | 6” | 150 | 5.91 | 154 | 6.06 | 188 | 7.40 | 196 | 7.72 | 16 | 160 | 2,320 | 32 | 320 | 4,640 | 2,580 | 101.57 | - | - |
| YH-M160-128 | -128 | 203 | 8” | 201 | 7.91 | 205 | 8.07 | 239 | 9.41 | 247 | 9.72 | 16 | 160 | 2,320 | 32 | 320 | 4,640 | 3,350 | 131.89 | - | - |
| YH-M160-160 | -160 | 254 | 10” | 252 | 9.92 | 256 | 10.08 | 295 | 11.61 | 303 | 11.93 | 16 | 160 | 2,320 | 32 | 320 | 4,640 | 4,110 | 161.81 | - | - |
| YH-M160-192 | -192 | 305 | 12” | 303 | 11.93 | 307 | 12.09 | 346 | 13.62 | 354 | 13.94 | 16 | 160 | 2,320 | 32 | 320 | 4,640 | 4,810 | 189.37 | - | - |
