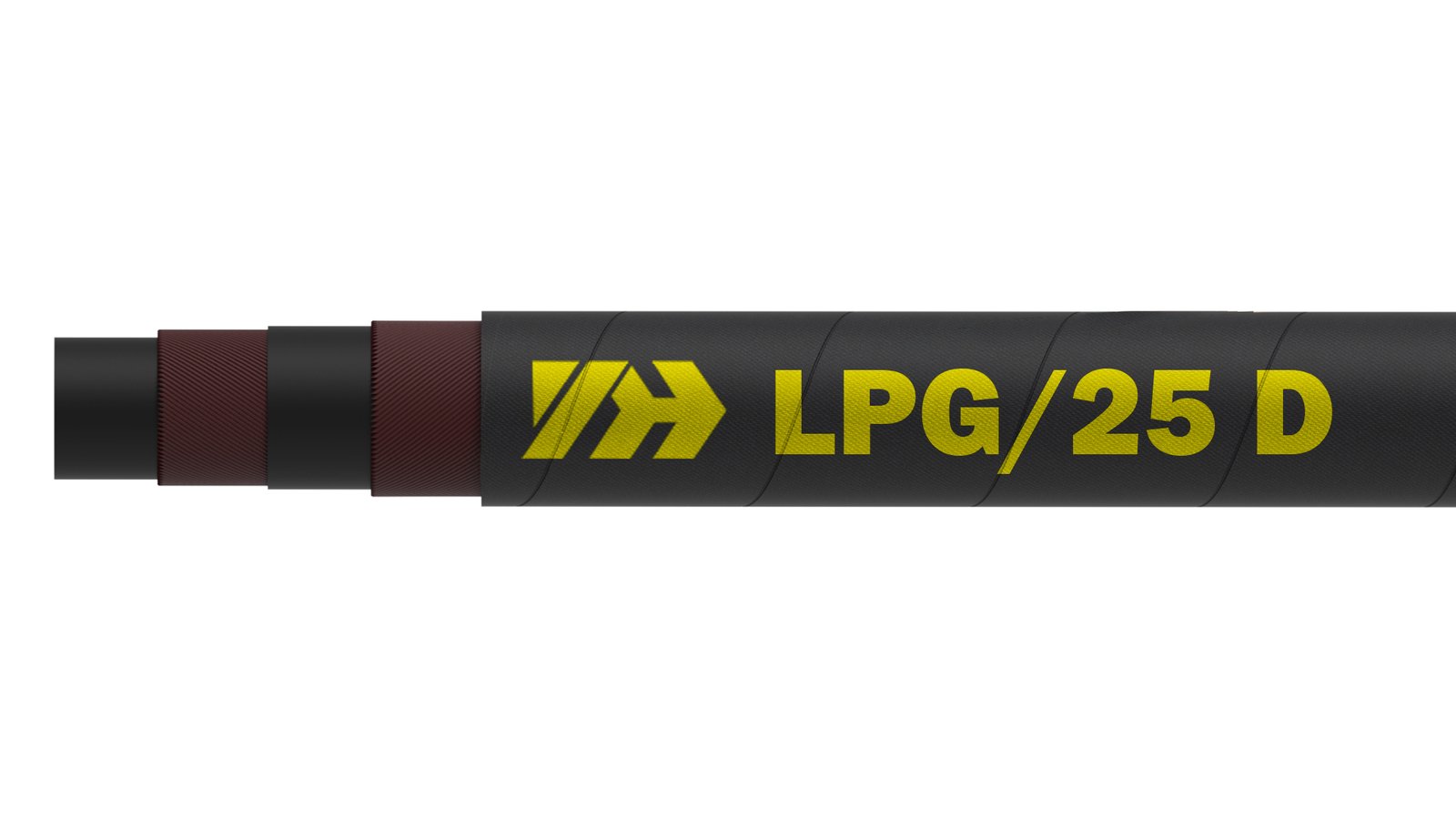

TUBE:
Black NBR conductive rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black, pin-pricked CR rubber, fire-proof, anti-static (R<106 Ohm/m), oil, abrasion and weathering resistant.
TEMPERATURE RANGE:
From -30°C to + 70°C (-22°F to +158°F).
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 40m (DN12 – DN19); 50m (DN25 – DN 51); 61m (DN 63 – DN 102).
APPLICABLE SPECS:
EN 1762 Type D / TRbF.
APPLICATION & FLUIDS:
Delivery hose for LPG.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-LPG25D-08 | -8 | 12 | 1/2” | - | - | - | - | - | - | 23.0 | 0.91 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 100 | 3.94 | 0.39 | 0.26 |
| YH-LPG25D-10 | -10 | 16 | 5/8” | - | - | - | - | - | - | 26.0 | 1.02 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 120 | 4.72 | 0.47 | 0.31 |
| YH-LPG25D-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 31.0 | 1.22 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 160 | 6.30 | 0.63 | 0.42 |
| YH-LPG25D-16 | -16 | 25 | 1” | - | - | - | - | - | - | 38.0 | 1.50 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 200 | 7.87 | 0.84 | 0.56 |
| YH-LPG25D-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 45.0 | 1.77 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 250 | 9.84 | 1.05 | 0.70 |
| YH-LPG25D-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 52.0 | 2.05 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 320 | 12.60 | 1.20 | 0.80 |
| YH-LPG25D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 67.0 | 2.64 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 400 | 15.75 | 1.83 | 1.22 |
| YH-LPG25D-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 81.0 | 3.19 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 550 | 21.65 | 2.50 | 1.67 |
| YH-LPG25D-48 | -48 | 76 | 3” | - | - | - | - | - | - | 94.0 | 3.70 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 650 | 25.59 | 3.02 | 2.01 |
| YH-LPG25D-64 | -64 | 102 | 4” | - | - | - | - | - | - | 120.0 | 4.72 | 2.5 | 25 | 375 | 10 | 100 | 1,500 | 800 | 31.50 | 3.86 | 2.57 |
