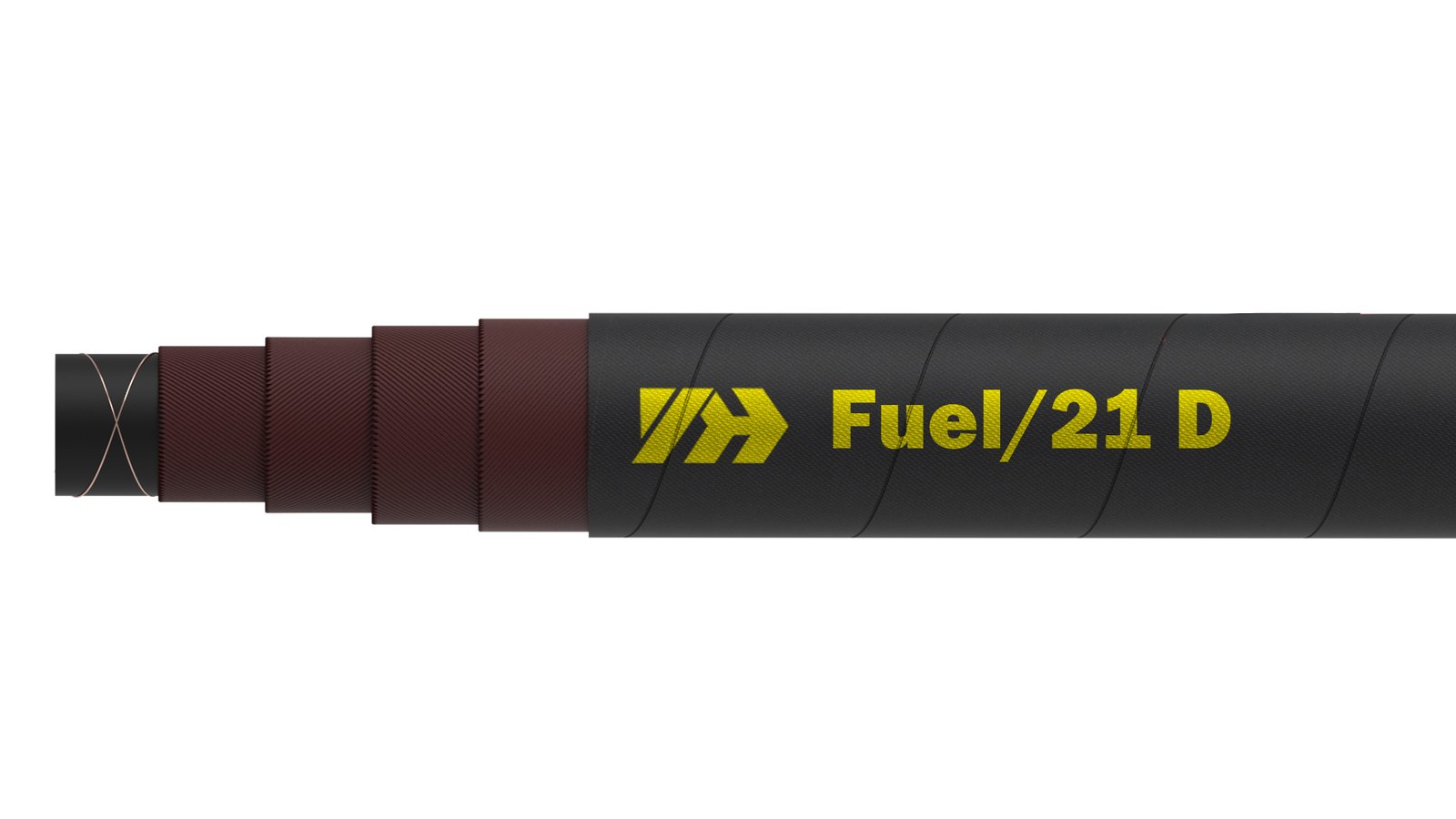

TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord with 2 crossing copper wires for grounding.
COVER:
Black synthetic SBR rubber, long lasting, ozone and weathering resistant.
TEMPERATURE RANGE:
From -30°C to + 90°C (-22°F to +194°F).
KEY FEATURES:
- Softwall delivery structure.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Fuels, oils, & diesel with aromatic content up to 50%.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-F21D-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 31.4 | 1.24 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 90 | 3.54 | 0.50 | 0.34 |
| YH-F21D-16 | -16 | 25 | 1” | - | - | - | - | - | - | 38.2 | 1.50 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 115 | 4.53 | 0.57 | 0.39 |
| YH-F21D-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 45.0 | 1.77 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 150 | 5.91 | 0.72 | 0.49 |
| YH-F21D-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 51.6 | 2.03 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 180 | 7.09 | 1.02 | 0.69 |
| YH-F21D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 62.1 | 2.44 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 240 | 9.45 | 1.29 | 0.87 |
| YH-F21D-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 78.2 | 3.08 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 300 | 11.81 | 1.74 | 1.17 |
| YH-F21D-48 | -48 | 76 | 3” | - | - | - | - | - | - | 88.9 | 3.50 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 380 | 14.96 | 2.03 | 1.37 |
