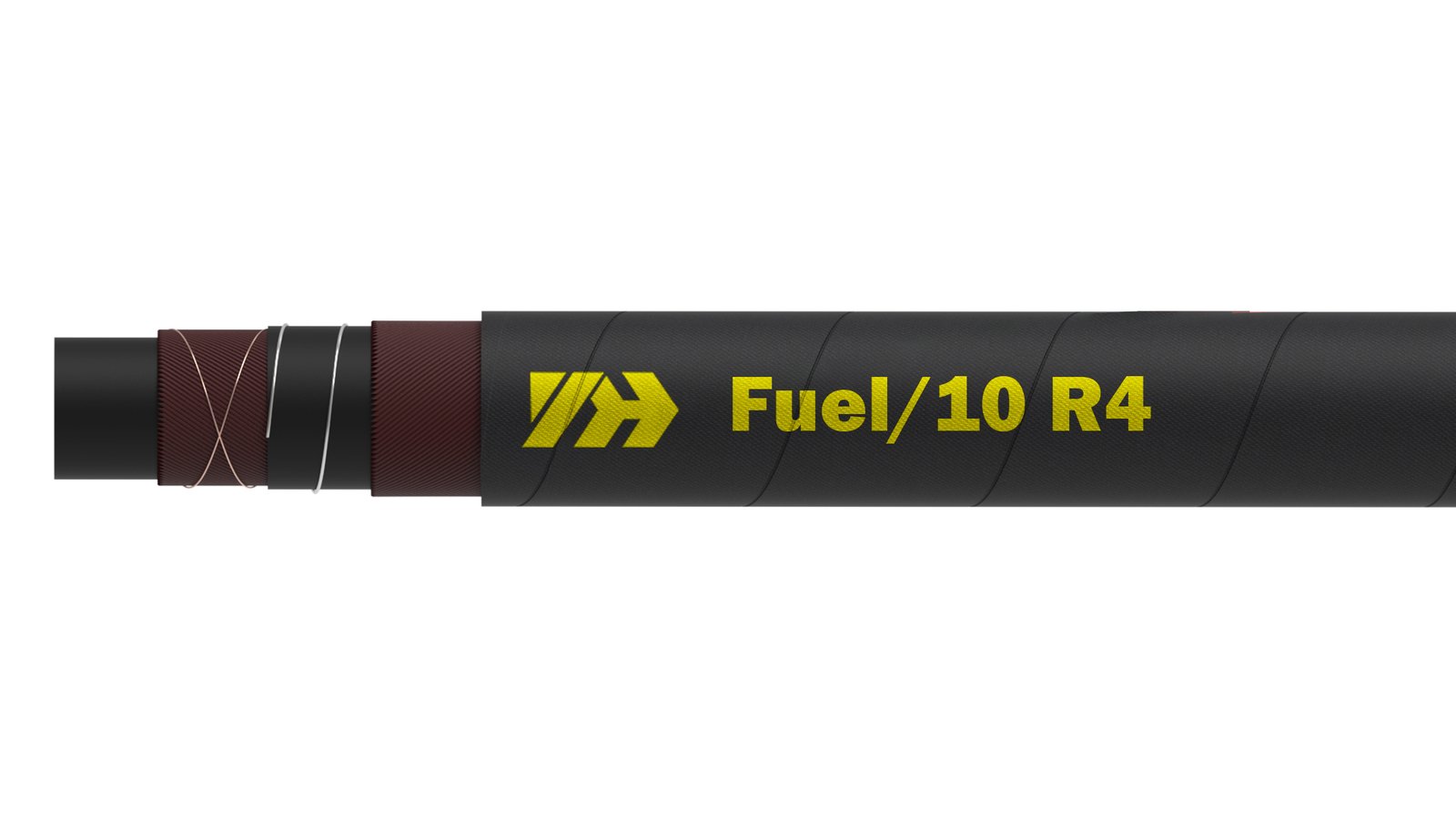

TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone and oil resistant.
TEMPERATURE RANGE:
From -30°C to + 90°C (-22°F to +194°F).
Hydraulic oils temperature range: -40°C to 100°C (-40°F to 212°F).
KEY FEATURES:
- Suitable as SAE j517 Type 100R4.
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
- Vacuum performance: -0.9 bar.
APPLICATION & FLUIDS:
Fuels and oils with aromatic content up to 50%.
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor
(maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-F10R4-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 29.5 | 1.16 | 2.1 | 21 | 300 | 8.4 | 84 | 1,218 | 80 | 3.14 | 0.53 | 0.36 |
| YH-F10R4-16 | -16 | 25 | 1” | - | - | - | - | - | - | 36.0 | 1.41 | 1.7 | 17 | 240 | 7.0 | 70 | 1,015 | 100 | 3.93 | 0.66 | 0.44 |
| YH-F10R4-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 42.5 | 1.67 | 1.4 | 14 | 200 | 5.6 | 56 | 812 | 130 | 5.11 | 0.81 | 0.54 |
| YH-F10R4-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 49.5 | 1.94 | 1.1 | 11 | 160 | 4.4 | 44 | 638 | 170 | 6.69 | 1.05 | 0.71 |
| YH-F10R4-25 | -25 | 40 | 1-9/16” | - | - | - | - | - | - | 50.0 | 1.97 | 1.0 | 10 | 150 | 4.0 | 40 | 580 | 170 | 6.69 | 1.28 | 0.86 |
| YH-F10R4-28 | -18 | 45 | 1-3/4” | - | - | - | - | - | - | 56.0 | 2.20 | 1.0 | 10 | 150 | 4.0 | 40 | 580 | 180 | 7.09 | 1.49 | 1.00 |
| YH-F10R4-32 | -32 | 51 | 2” | - | - | - | - | - | - | 61.5 | 2.42 | 1.0 | 10 | 150 | 4.0 | 40 | 580 | 200 | 7.87 | 1.72 | 1.16 |
| YH-F10R4-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 74.5 | 2.93 | 1.0 | 10 | 150 | 4.0 | 40 | 580 | 250 | 9.84 | 2.05 | 1.38 |
| YH-F10R4-48 | -48 | 76 | 3” | - | - | - | - | - | - | 88.5 | 3.48 | 1.0 | 10 | 150 | 4.0 | 40 | 580 | 300 | 11.81 | 2.50 | 1.68 |
| YH-F10R4-64 | -64 | 102 | 4” | - | - | - | - | - | - | 116.0 | 4.56 | 1.0 | 10 | 150 | 4.0 | 40 | 580 | 400 | 15.74 | 3.60 | 2.42 |
| YH-F10R4-80 | -80 | 127 | 5” | - | - | - | - | - | - | 144.0 | 5.67 | 1.0 | 10 | 150 | 4.0 | 40 | 580 | 510 | 20.08 | 5.36 | 3.60 |
