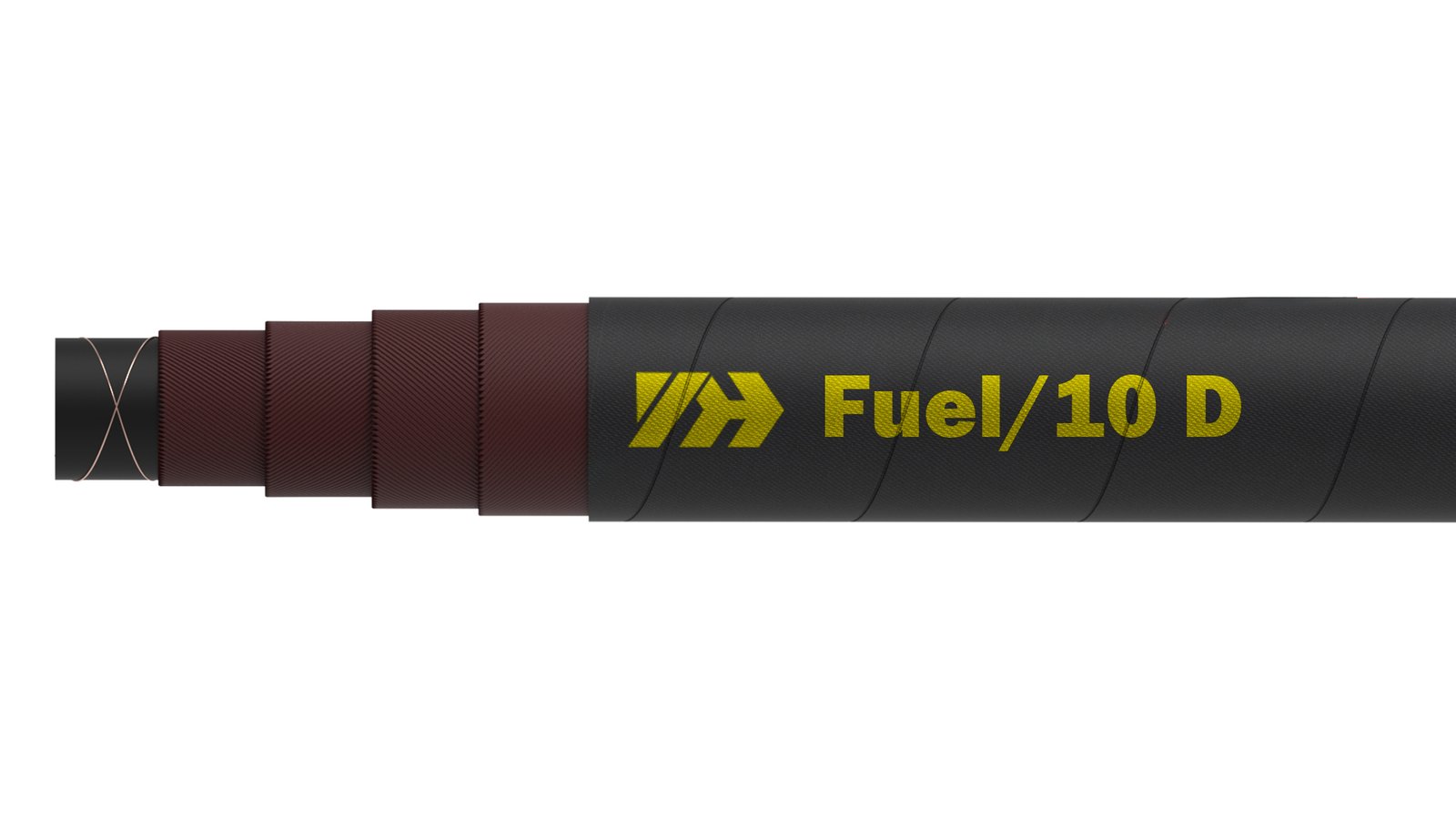

TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord and 2 crossing copper wires for grounding.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone resistant.
TEMPERATURE RANGE:
From -30°C to + 90°C (-22°F to +194°F).
KEY FEATURES:
- Softwall delivery structure.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Fuels, oils and diesel with aromatic content up to 50%.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor
(maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-F10D-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 31.4 | 1.24 | 1.0 | 10 | 150 | 3.1 | 31 | 450 | 90 | 3.54 | 0.50 | 0.34 |
| YH-F10D-16 | -16 | 25 | 1” | - | - | - | - | - | - | 37.8 | 1.49 | 1.0 | 10 | 150 | 3.1 | 31 | 450 | 115 | 4.53 | 0.62 | 0.42 |
| YH-F10D-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 44.4 | 1.75 | 1.0 | 10 | 150 | 3.1 | 31 | 450 | 150 | 5.91 | 0.78 | 0.53 |
| YH-F10D-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 52.5 | 2.07 | 1.0 | 10 | 150 | 3.1 | 31 | 450 | 180 | 7.09 | 0.85 | 0.58 |
| YH-F10D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 65.3 | 2.57 | 1.0 | 10 | 150 | 3.1 | 31 | 450 | 240 | 9.45 | 1.12 | 0.76 |
| YH-F10D-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 78.5 | 3.09 | 1.0 | 10 | 150 | 3.1 | 31 | 450 | 300 | 11.81 | 1.67 | 1.13 |
| YH-F10D-48 | -48 | 76 | 3” | - | - | - | - | - | - | 94.3 | 3.71 | 1.0 | 10 | 150 | 3.1 | 31 | 450 | 380 | 14.96 | 2.04 | 1.37 |
