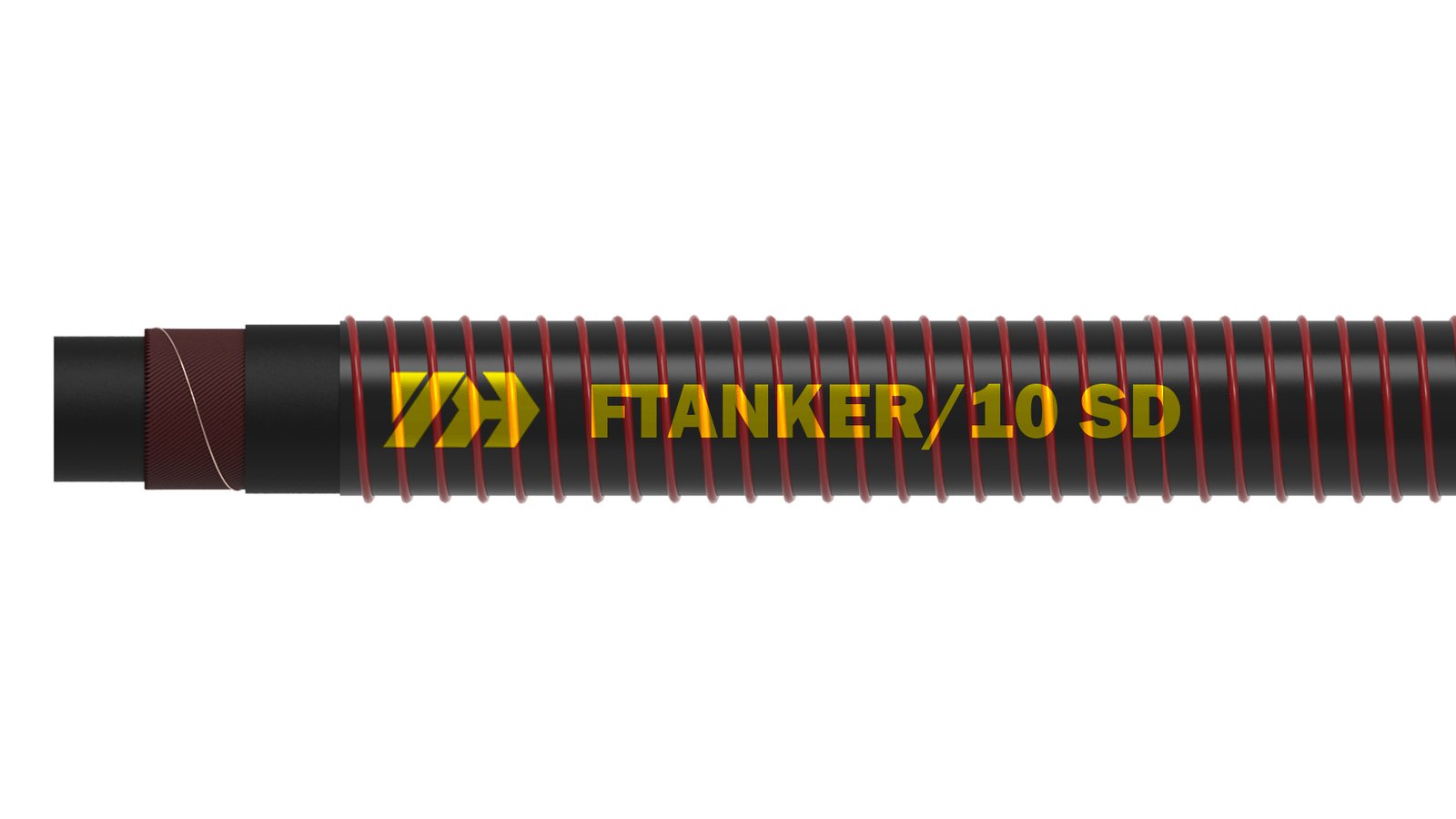

TUBE:
Black anti-static NBR rubber.
REINFORCEMENT:
High tensile synthetic cord and copper wire for grounding.
COVER:
Black, smooth, glossy NBR/PVC rubber with red thermoplastic spiral, resistant to abrasion, ozone and weathering.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Extreme abrasion resistance.
- Designed for tankers.
- Long length assemblies available – Max length: 40m.
APPLICATION & FLUIDS:
Suction & delivery hose for mineral oils, diesel fuel and gasoline with aromatic contents up to 50%.
Very light and flexible.
Extraordinarily resistant to abrasion.
Ideal for fuel distribution company road tankers.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-FT10SD-32 | -32 | 51 | 2” | - | - | - | - | - | - | 60.0 | 2.36 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 110 | 4.33 | 1.55 | 1.05 |
| YH-FT10SD-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 73.5 | 2.89 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 138 | 5.43 | 1.97 | 1.33 |
| YH-FT10SD-48 | -48 | 76 | 3” | - | - | - | - | - | - | 86.0 | 3.39 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 170 | 6.69 | 2.25 | 1.52 |
| YH-FT10SD-64 | -64 | 102 | 4” | - | - | - | - | - | - | 116.0 | 4.57 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 230 | 9.06 | 3.00 | 2.02 |
