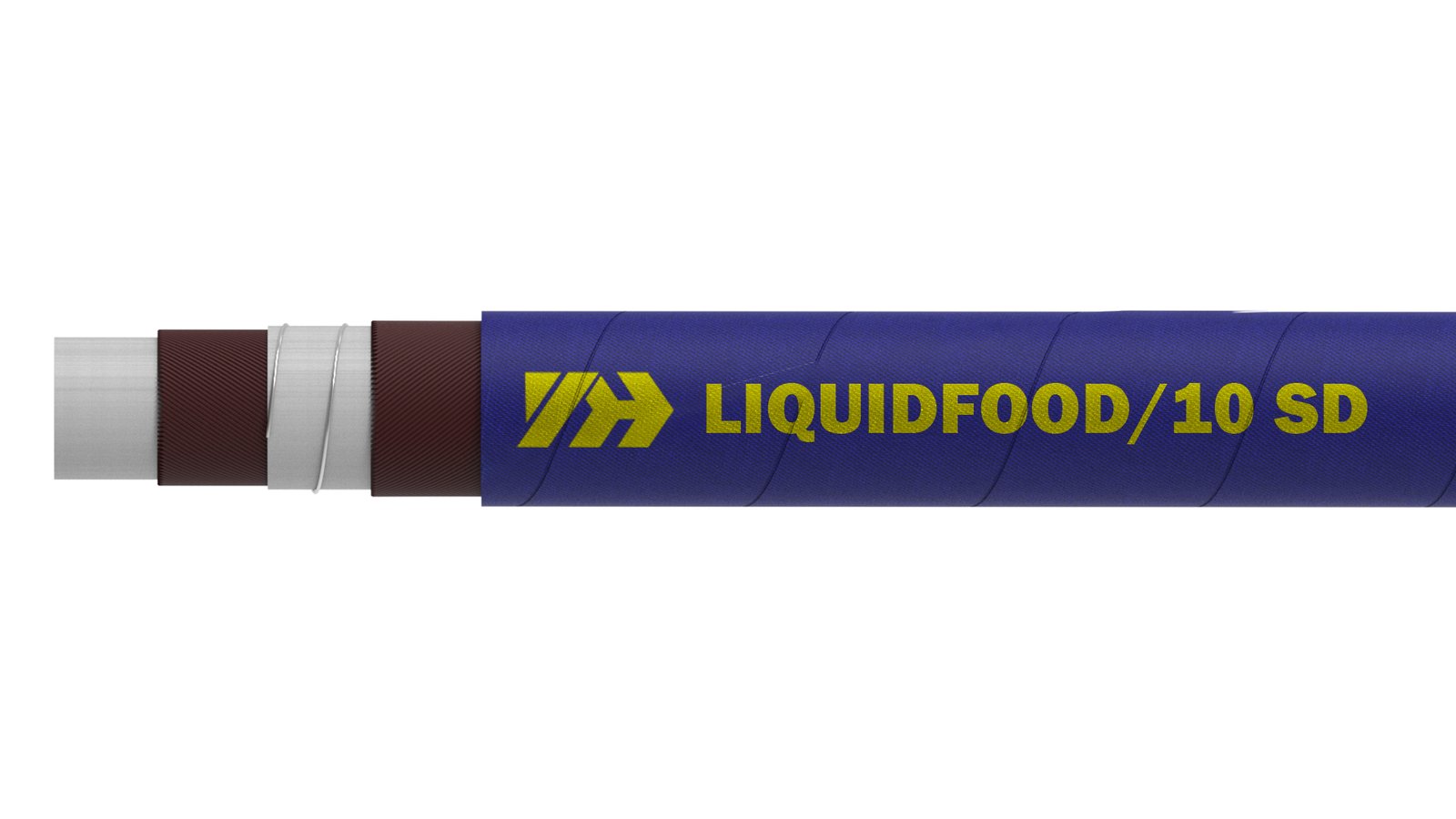

TUBE:
White EPDM rubber, food quality odourless and taste-free.
REINFORCEMENT:
High tensile synthetic cord with 2 steel helix body wires.
COVER:
Blue EPDM rubber, ozone, abrasion and weathering resistant.
TEMPERATURE RANGE:
From -40°C to + 140°C (-40°F to +284°F) – sterilization at 110°C / 230°F for 30 minutes.
KEY FEATURES:
• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Suction & delivery multi-purpose hose.
Fatty foods, wine, beer, potable water etc.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-LF10SD-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 50.0 | 1.97 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 150 | 5.91 | 1.44 | 0.96 |
| YH-LF10SD-32 | -32 | 51 | 2” | - | - | - | - | - | - | 63.0 | 2.48 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 205 | 8.07 | 2.10 | 1.40 |
| YH-LF10SD-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 78.0 | 3.07 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 285 | 11.22 | 2.53 | 1.69 |
| YH-LF10SD-48 | -48 | 76 | 3” | - | - | - | - | - | - | 91.0 | 3.58 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 390 | 15.35 | 3.22 | 2.15 |
| YH-LF10SD-64 | -60 | 102 | 4” | - | - | - | - | - | - | 120.0 | 4.72 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 500 | 19.69 | 4.63 | 3.09 |
