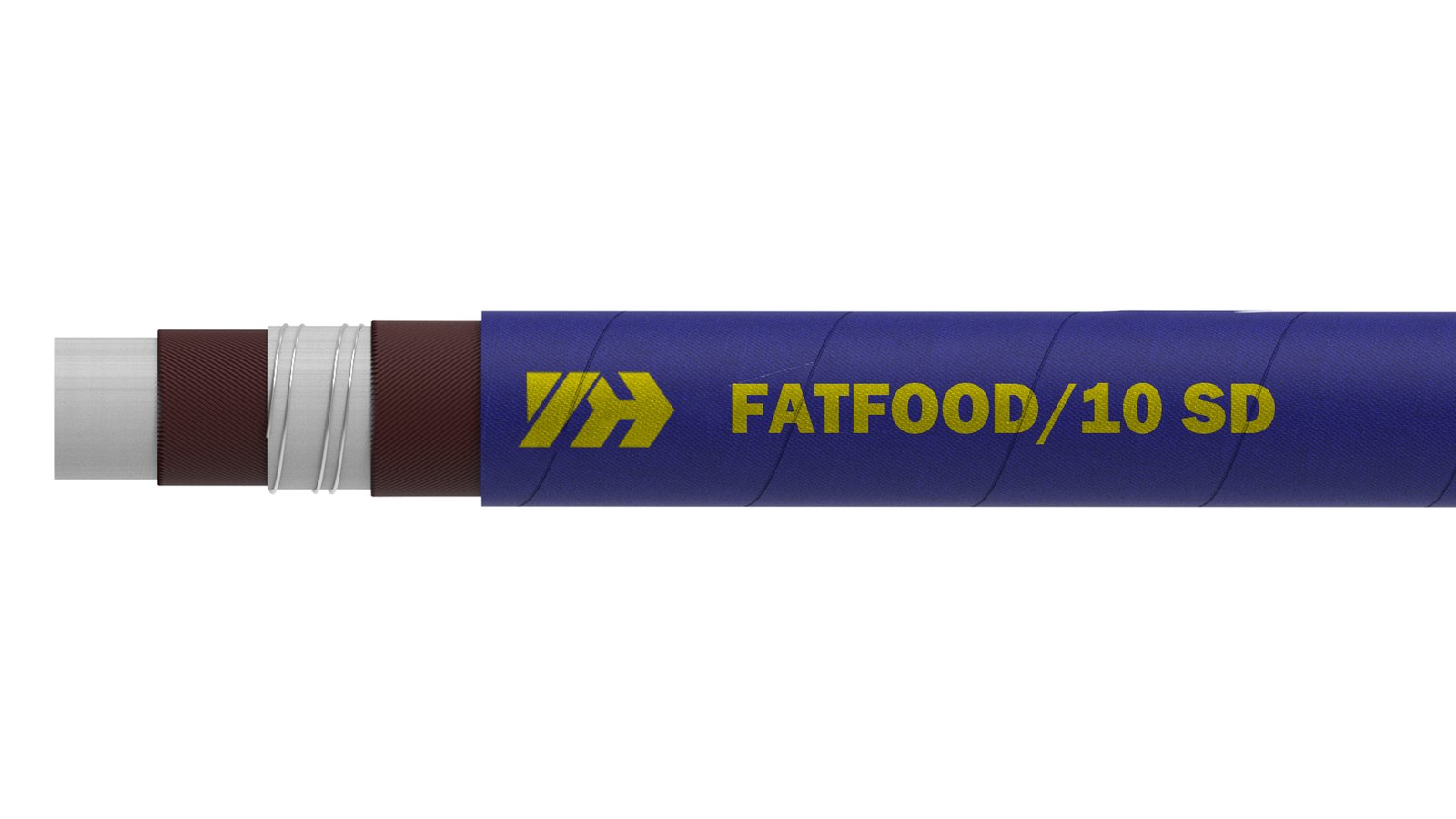

TUBE:
White NBR rubber, food quality odourless and taste-free.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire.
COVER:
Blue NBR rubber, ozone, abrasion and weathering resistant.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F) – sterilization at 110°C / 230°F for 30 minutes.
KEY FEATURES:
• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Suction and delivery of milk and fatty foods.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-FF10SD-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 29.0 | 1.14 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 40 | 1.57 | 0.65 | 0.43 |
| YH-FF10SD-16 | -16 | 25 | 1” | - | - | - | - | - | - | 35.0 | 1.38 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 55 | 2.17 | 0.82 | 0.55 |
| YH-FF10SD-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 44.0 | 1.73 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 74 | 2.91 | 1.25 | 0.83 |
| YH-FF10SD-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 50.0 | 1.97 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 86 | 3.39 | 1.45 | 0.97 |
| YH-FF10SD-32 | -32 | 51 | 2” | - | - | - | - | - | - | 64.0 | 2.52 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 112 | 4.41 | 1.96 | 1.31 |
| YH-FF10SD-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 77.0 | 3.03 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 136 | 5.35 | 2.45 | 1.63 |
| YH-FF10SD-48 | -48 | 76 | 3” | - | - | - | - | - | - | 90.0 | 3.54 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 160 | 6.30 | 2.97 | 1.98 |
| YH-FF10SD-64 | -60 | 102 | 4” | - | - | - | - | - | - | 116.0 | 4.57 | 1.0 | 10 | 150 | 3.0 | 30 | 450 | 380 | 14.96 | 6.70 | 4.47 |
