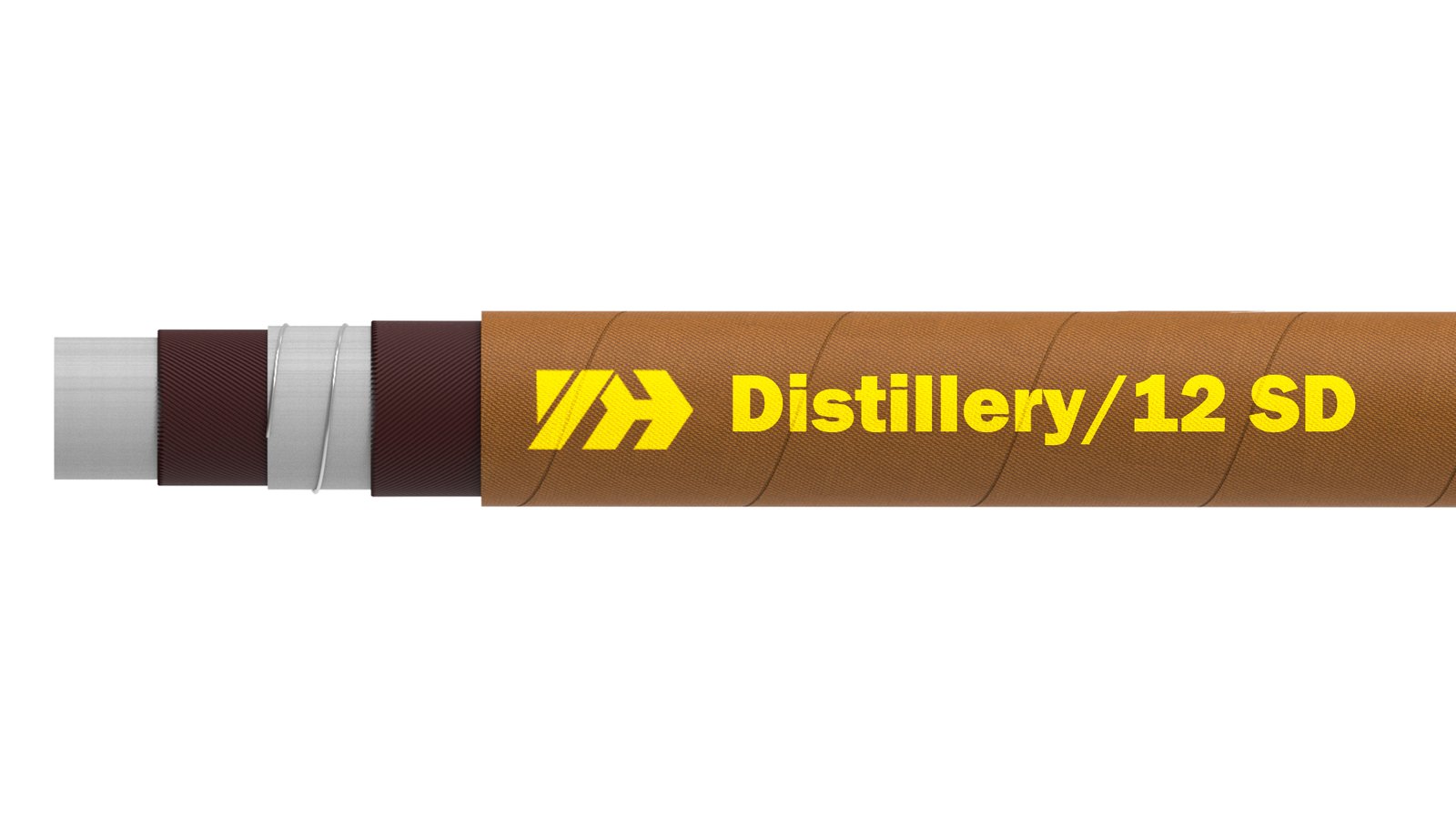

TUBE:
White BIIR (butyl) rubber, food quality, odourless & taste-free.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire.
COVER:
Orange EPDM rubber, ozone, abrasion and weathering resistant.
TEMPERATURE RANGE:
From -40°C to + 120°C (-40°F to +248°F) – sterilization at 110°C / 230°F for 30 minutes.
KEY FEATURES:
• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Suction and delivery for beer, wine, alcohol and soft drinks.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-DS12SD-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 32.0 | 1.26 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 80 | 3.15 | 0.78 | 0.52 |
| YH-DS12SD-16 | -16 | 25 | 1” | - | - | - | - | - | - | 38.0 | 1.50 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 115 | 4.53 | 0.92 | 0.61 |
| YH-DS12SD-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 46.0 | 1.81 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 145 | 5.71 | 1.19 | 0.79 |
| YH-DS12SD-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 52.0 | 2.05 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 180 | 7.09 | 1.48 | 0.99 |
| YH-DS12SD-32 | -32 | 51 | 2” | - | - | - | - | - | - | 65.0 | 2.56 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 245 | 9.65 | 1.89 | 1.26 |
| YH-DS12SD-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 81.0 | 3.19 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 340 | 13.39 | 2.91 | 1.94 |
| YH-DS12SD-48 | -48 | 76 | 3” | - | - | - | - | - | - | 95.0 | 3.74 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 410 | 16.14 | 3.41 | 2.27 |
| YH-DS12SD-64 | -60 | 102 | 4” | - | - | - | - | - | - | 122.0 | 4.80 | 1.2 | 12 | 180 | 3.6 | 36 | 540 | 580 | 22.83 | 4.96 | 3.31 |
