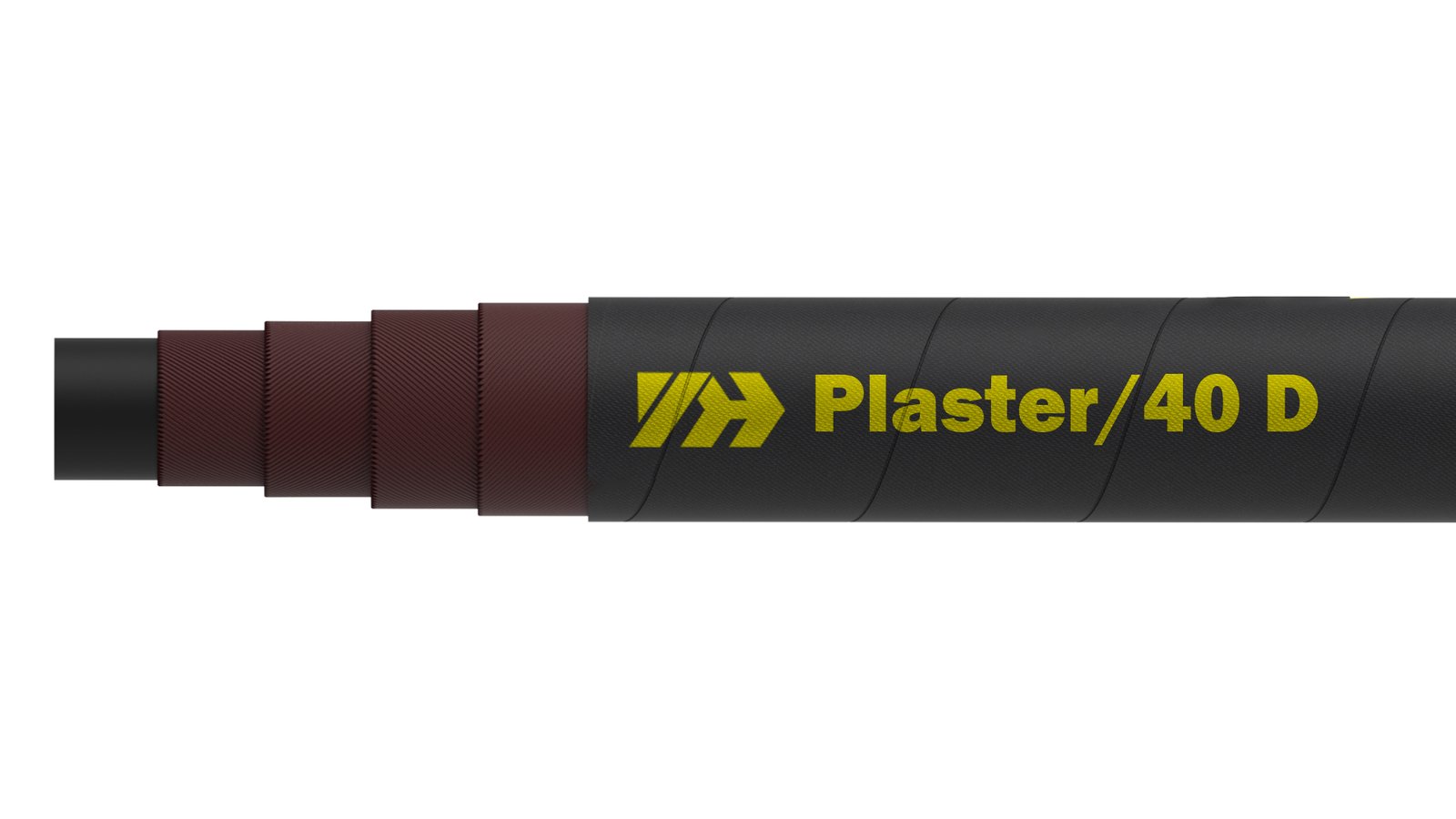

TUBE:
Black, NR/SBR rubber, abrasion resistant thick tube.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black, NR/SBR rubber, abrasion resistant.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
KEY FEATURES:
• Softwall delivery structure.
• High resistance to continuous abrasion.
• Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Mortar, gypsum, grout spraying at open air, indoor or underground construction sites, etc.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-P40D-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 32.5 | 1.28 | 4.0 | 40 | 580 | 12 | 120 | 1,740 | 150 | 5.90 | 0.54 | 0.36 |
| YH-P40D-16 | -16 | 25 | 1” | - | - | - | - | - | - | 39.3 | 1.55 | 4.0 | 40 | 580 | 12 | 120 | 1,740 | 170 | 6.69 | 0.68 | 0.46 |
| YH-P40D-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 45.2 | 1.78 | 4.0 | 40 | 580 | 12 | 120 | 1,740 | 200 | 7.87 | 0.88 | 0.59 |
| YH-P40D-22 | -22 | 35 | 1-3/8” | - | - | - | - | - | - | 51.0 | 2.01 | 4.0 | 40 | 580 | 12 | 120 | 1,740 | 200 | 7.87 | 1.10 | 0.74 |
| YH-P40D-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 54.6 | 2.15 | 4.0 | 40 | 580 | 12 | 120 | 1,740 | 230 | 9.05 | 1.23 | 0.83 |
| YH-P40D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 67.8 | 2.67 | 4.0 | 40 | 580 | 12 | 120 | 1,740 | 270 | 10.62 | 1.85 | 1.24 |
