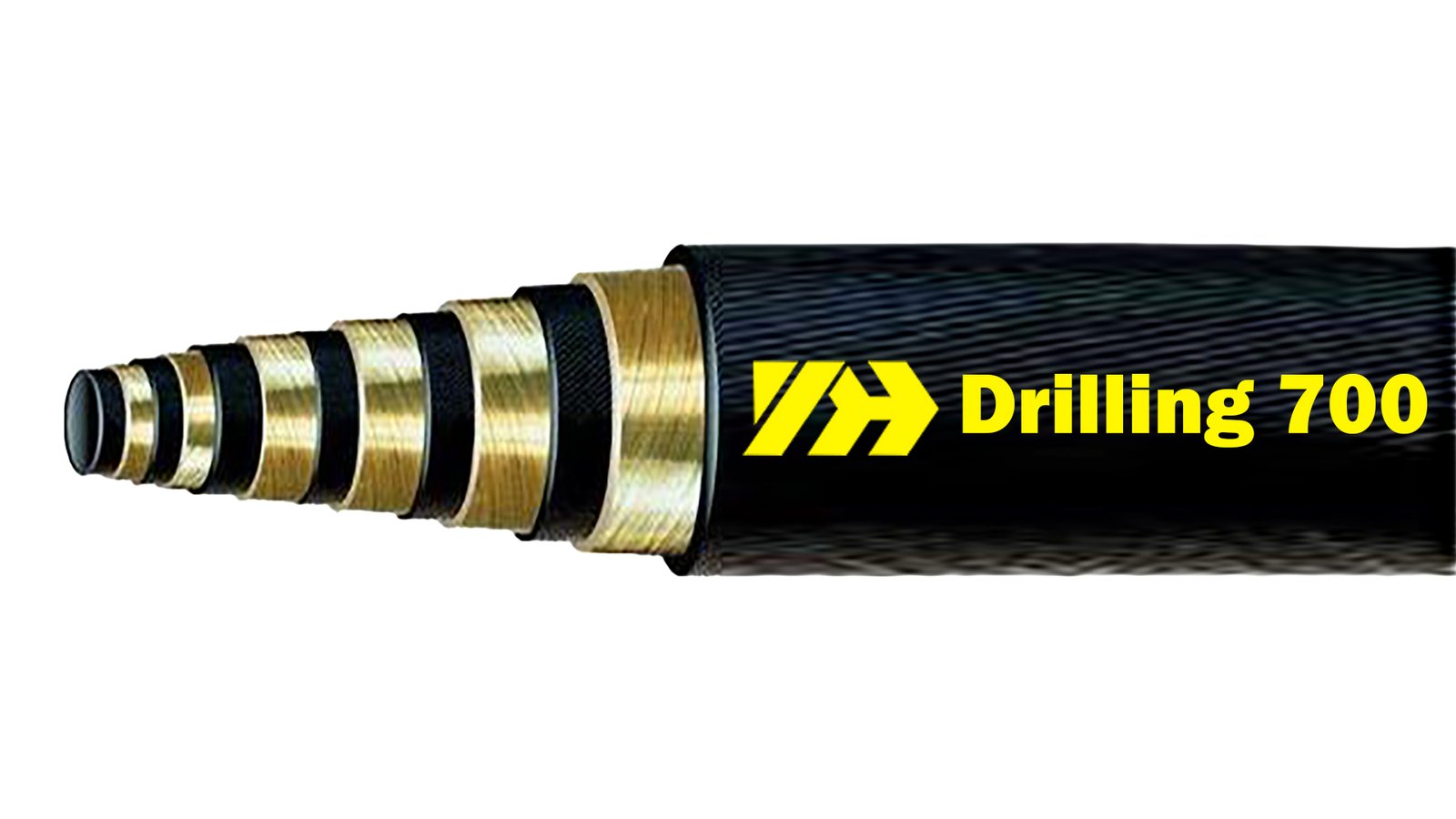

Drilling 700 – Yuheng

TUBE:

Black, smooth, synthetic NR and NBR rubber.

REINFORCEMENT:

Six steel wire spirals.

COVER:

Corrosion- and weather-resistant synthetic rubber.

TEMPERATURE RANGE:

From -30°C to + 80°C (-22°F to +176°F).

KEY FEATURES:

• Excellent flexibility and pressure resistance, ensuring reliable performance under tough working conditions.
• High wear resistance and long service life, even when conveying abrasive slurries.
• Strong steel wire spiral reinforcement provides superior strength and kink resistance.
• Smooth inner tube minimizes flow resistance and improves delivery efficiency.
• Resistant to oil, weather, and aging for extended outdoor use.
• Suitable for transferring slurry, water, and various fluids at ambient temperature.

APPLICATION & FLUIDS:

Widely used in oil fields, well cementing, geological exploration, drilling operations, and coal mining for conveying slurry, water, and other fluids at ambient temperature.

WORKING PRESSURE:

Maximum working pressures are based on 2:1 safety factor (maximum working pressure to minimum burst pressure).

TECHNICAL DATA

Part Number	Inside Diameter							Outside Diameter				Max Working Pressure			Min Burst Pressure			Min Bend Radius		Approx. Weight
	dash	DN	inch	Min ID		Max ID		Min OD		Max OD		MPa	bar	psi	MPa	bar	psi	mm	inch	kg/m	lb/ft
	dash	DN	inch	mm	inch	mm	inch	mm	inch	mm	inch	MPa	bar	psi	MPa	bar	psi	mm	inch	kg/m	lb/ft
YH-DR700-32	-32	51	2”	50.0	1.97	52.0	2.05	71.5	2.81	74.5	2.93	70	700	10,150	140	1,400	20,230	900	35.43	6.20	4.17
YH-DR700-40	-40	63	2-1/2”	62.0	2.44	65.0	2.56	87.5	3.44	91.5	3.60	70	700	10,150	140	1,400	20,230	1,500	59.06	7.40	4.97
YH-DR700-48	-48	76	3”	75.0	2.95	77.0	3.03	116.5	4.59	120.5	4.74	70	700	10,150	140	1,400	20,230	1,500	59.06	23.70	15.93
YH-DR700-56	-56	89	3-1/2”	87.6	3.45	90.4	3.56	127.5	5.02	131.5	5.18	70	700	10,150	140	1,400	20,230	1,500	59.06	26.60	17.87
YH-DR700-64	-64	102	4”	100.5	3.96	103.5	4.07	138.5	5.45	144.5	5.69	70	700	10,150	140	1,400	20,230	1,500	59.06	29.80	20.02
