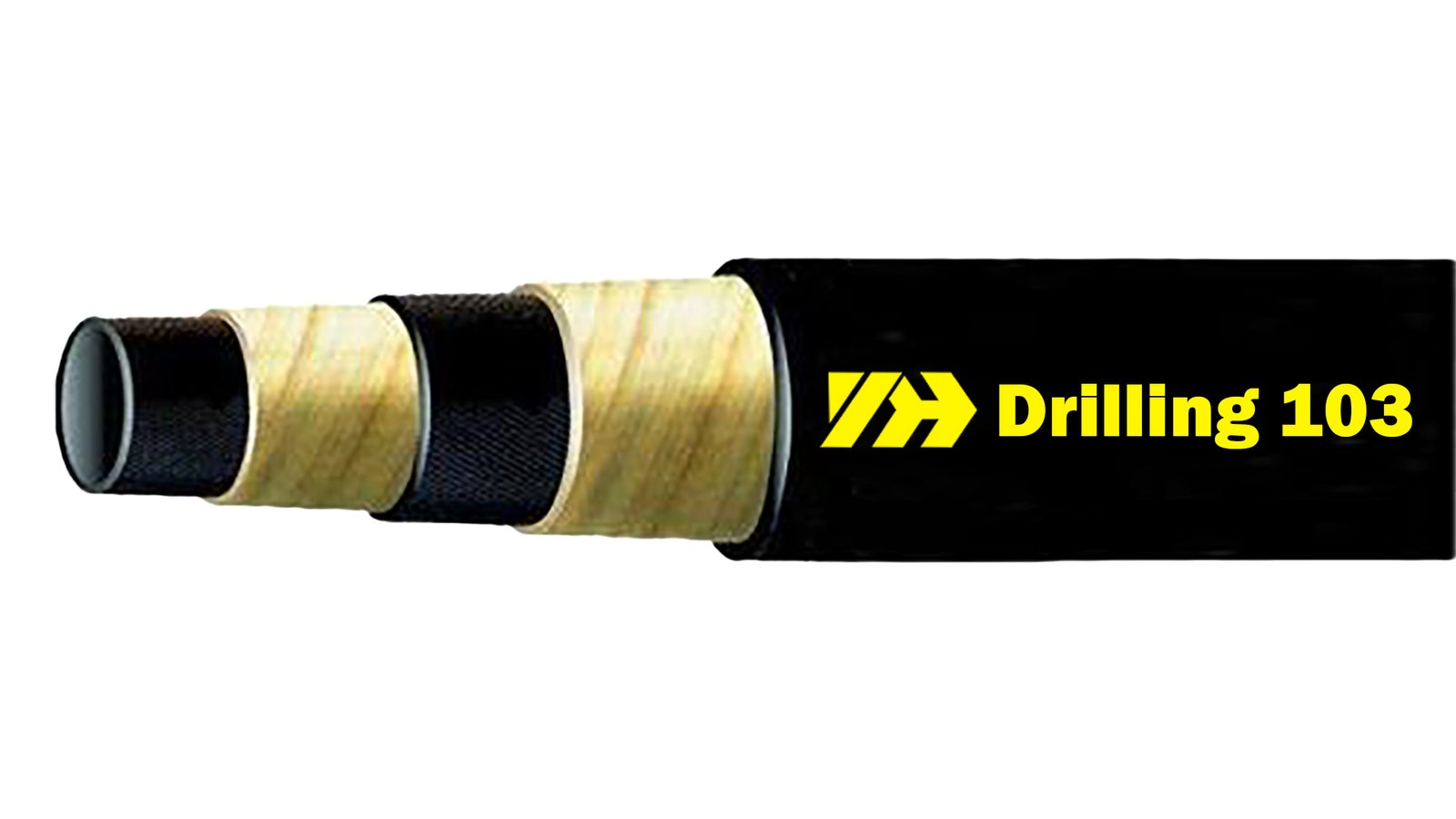

TUBE:
Black, smooth, synthetic NR and NBR rubber.
REINFORCEMENT:
Two steel wire spirals.
COVER:
Corrosion- and weather-resistant synthetic rubber.
TEMPERATURE RANGE:
From -30°C to + 80°C (-22°F to +176°F).
KEY FEATURES:
• Excellent flexibility and pressure resistance, ensuring reliable performance under tough working conditions.
• High wear resistance and long service life, even when conveying abrasive slurries.
• Strong steel wire spiral reinforcement provides superior strength and kink resistance.
• Smooth inner tube minimizes flow resistance and improves delivery efficiency.
• Resistant to oil, weather, and aging for extended outdoor use.
• Suitable for transferring slurry, water, and various fluids at ambient temperature.
APPLICATION & FLUIDS:
Widely used in oil fields, well cementing, geological exploration, drilling operations, and coal mining for conveying slurry, water, and other fluids at ambient temperature.
WORKING PRESSURE:
Maximum working pressures are based on 2:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-DR103-40 | -40 | 63 | 2-1/2” | 62.0 | 2.44 | 64.0 | 2.52 | 75.0 | 2.95 | 79.0 | 3.11 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 900 | 35.43 | 6.40 | 4.30 |
| YH-DR103-48 | -48 | 76 | 3” | 75.0 | 2.95 | 77.0 | 3.03 | 97.0 | 3.82 | 100.0 | 3.94 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 1,200 | 47.24 | 8.50 | 5.71 |
| YH-DR103-56 | -56 | 89 | 3-1/2” | 87.6 | 3.45 | 90.4 | 3.56 | 109.0 | 4.29 | 113.0 | 4.45 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 1,400 | 55.12 | 11.00 | 7.39 |
| YH-DR103-64 | -64 | 102 | 4” | 100.5 | 3.96 | 103.5 | 4.07 | 121.0 | 4.76 | 127.0 | 5.00 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 1,400 | 55.12 | 13.60 | 9.14 |
| YH-DR103-80 | -80 | 127 | 5” | 125.5 | 4.94 | 128.5 | 5.06 | 137.0 | 5.39 | 143.0 | 5.63 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 1,600 | 62.99 | 15.50 | 10.42 |
| YH-DR103-96 | -96 | 152 | 6” | 150.0 | 5.91 | 154.0 | 6.06 | 176.0 | 6.93 | 184.0 | 7.24 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 1,700 | 66.93 | 18.00 | 12.10 |
| YH-DR103-128 | -128 | 203 | 8” | 201.0 | 7.91 | 205.0 | 8.07 | 228.0 | 8.98 | 236.0 | 9.29 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 3,050 | 120.08 | 24.00 | 16.13 |
| YH-DR103-160 | -160 | 254 | 10” | 252.0 | 9.92 | 256.0 | 10.08 | 284.0 | 11.18 | 292.0 | 11.50 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 3,810 | 150.00 | 30.00 | 20.16 |
| YH-DR103-192 | -192 | 305 | 12” | 303.0 | 11.93 | 307.0 | 12.09 | 334.0 | 13.15 | 342.0 | 13.46 | 10.3 | 103 | 1,494 | 30.9 | 309 | 4,481 | 4,510 | 177.56 | 36.00 | 24.19 |
