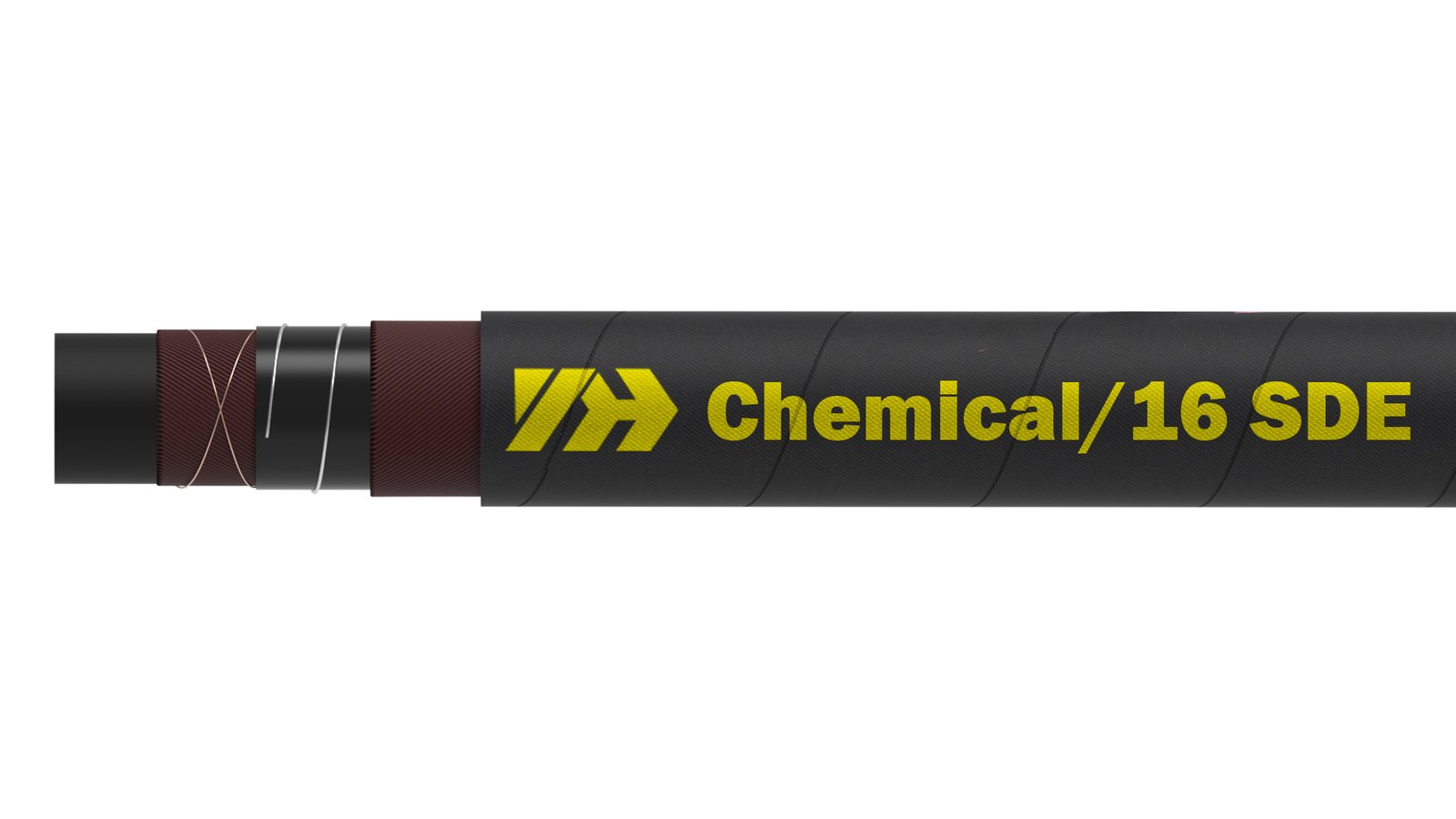

TUBE:
Black, smooth anti-static EPDM rubber.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic CR rubber, fire-proof, anti-static (R<1M Ohm/m), chemical, ozone and weathering resistant.
TEMPERATURE RANGE:
From -40°C to + 100°C (-40°F to +212°F).
KEY FEATURES:
• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Suction and delivery of chemicals as per EN12115 Fireproof and anti-static cover (R < 106 Ohm/m).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-CH16SDE-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 31.0 | 1.22 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 125 | 4.92 | 0.70 | 0.47 |
| YH-CH16SDE-16 | -16 | 25 | 1” | - | - | - | - | - | - | 37.0 | 1.46 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 150 | 5.91 | 0.92 | 0.62 |
| YH-CH16SDE-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 44.0 | 1.73 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 175 | 6.89 | 1.09 | 0.73 |
| YH-CH16SDE-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 51.0 | 2.01 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 225 | 8.86 | 1.35 | 0.91 |
| YH-CH16SDE-32 | -32 | 51 | 2” | - | - | - | - | - | - | 67.0 | 2.64 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 275 | 10.83 | 1.84 | 1.24 |
| YH-CH16SDE-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 80.0 | 3.15 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 300 | 11.81 | 2.54 | 1.71 |
| YH-CH16SDE-48 | -48 | 76 | 3” | - | - | - | - | - | - | 92.0 | 3.62 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 350 | 13.78 | 3.20 | 2.15 |
| YH-CH16SDE-64 | -64 | 102 | 4” | - | - | - | - | - | - | 118.0 | 4.65 | 1.6 | 16 | 240 | 6.4 | 64 | 960 | 450 | 17.71 | 4.43 | 2.98 |
