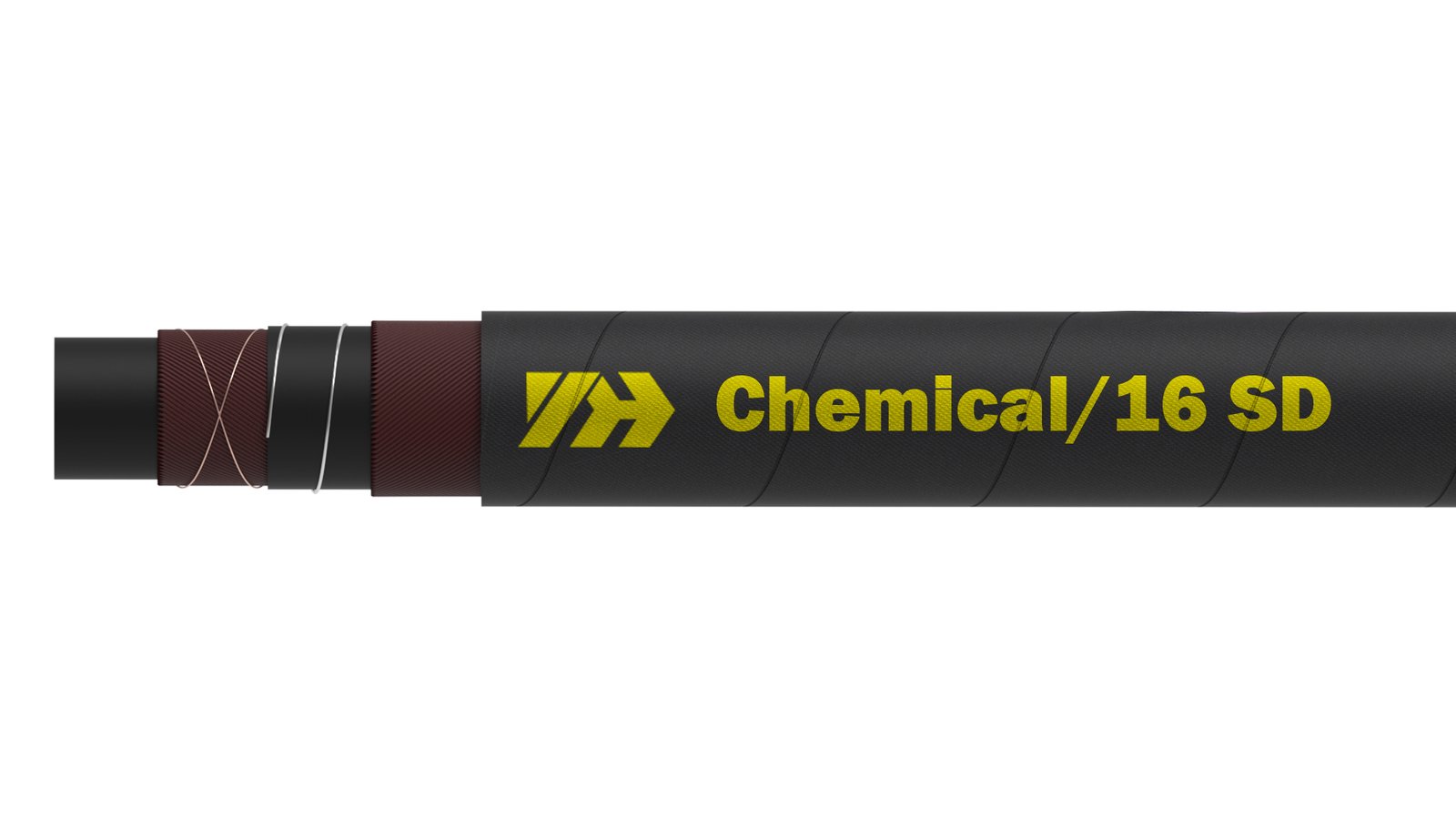

Chemical/16 SD

TUBE:

White glossy non-conductive FEP (Fluorinated ethylene propylene).

REINFORCEMENT:

High tensile synthetic cord with steel helix body wire and 2 crossing
copper wires for grounding.

COVER:

Black synthetic CR rubber, fire-proof, anti-static (R<106 Ohm/m), chemical, ozone and weathering resistant.

TEMPERATURE RANGE:

From -50°C to + 170°C (-58°F to +338°F).

KEY FEATURES:

• Hardwall delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 20m.

APPLICATION & FLUIDS:

Suction & delivery for chemicals, petroleum and food stuffs as per
EN 12115 specifications. Hose tube is FDA approved.

WORKING PRESSURE:

Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

TECHNICAL DATA

Part Number	Inside Diameter							Outside Diameter				Max Working Pressure			Min Burst Pressure			Min Bend Radius		Approx. Weight
	dash	DN	inch	Min ID		Max ID		Min OD		Max OD		MPa	bar	psi	MPa	bar	psi	mm	inch	kg/m	lb/ft
	dash	DN	inch	mm	inch	mm	inch	mm	inch	mm	inch	MPa	bar	psi	MPa	bar	psi	mm	inch	kg/m	lb/ft
YH-CH16SD-08	-8	12	1/2”							25.0	0.98	1.6	16	240	6.4	64	960	84	3.31	0.32	0.21
YH-CH16SD-12	-12	19	3/4”	-	-	-	-	-	-	31.0	1.22	1.6	16	240	6.4	64	960	125	4.92	0.71	0.47
YH-CH16SD-16	-16	25	1”	-	-	-	-	-	-	37.0	1.46	1.6	16	240	6.4	64	960	150	5.91	0.87	0.58
YH-CH16SD-20	-20	32	1-1/4”	-	-	-	-	-	-	44.0	1.73	1.6	16	240	6.4	64	960	175	6.89	1.07	0.71
YH-CH16SD-24	-24	38	1-1/2”	-	-	-	-	-	-	51.0	2.01	1.6	16	240	6.4	64	960	225	8.86	1.35	0.90
YH-CH16SD-32	-32	51	2”	-	-	-	-	-	-	67.0	2.64	1.6	16	240	6.4	64	960	275	10.83	2.29	1.53
