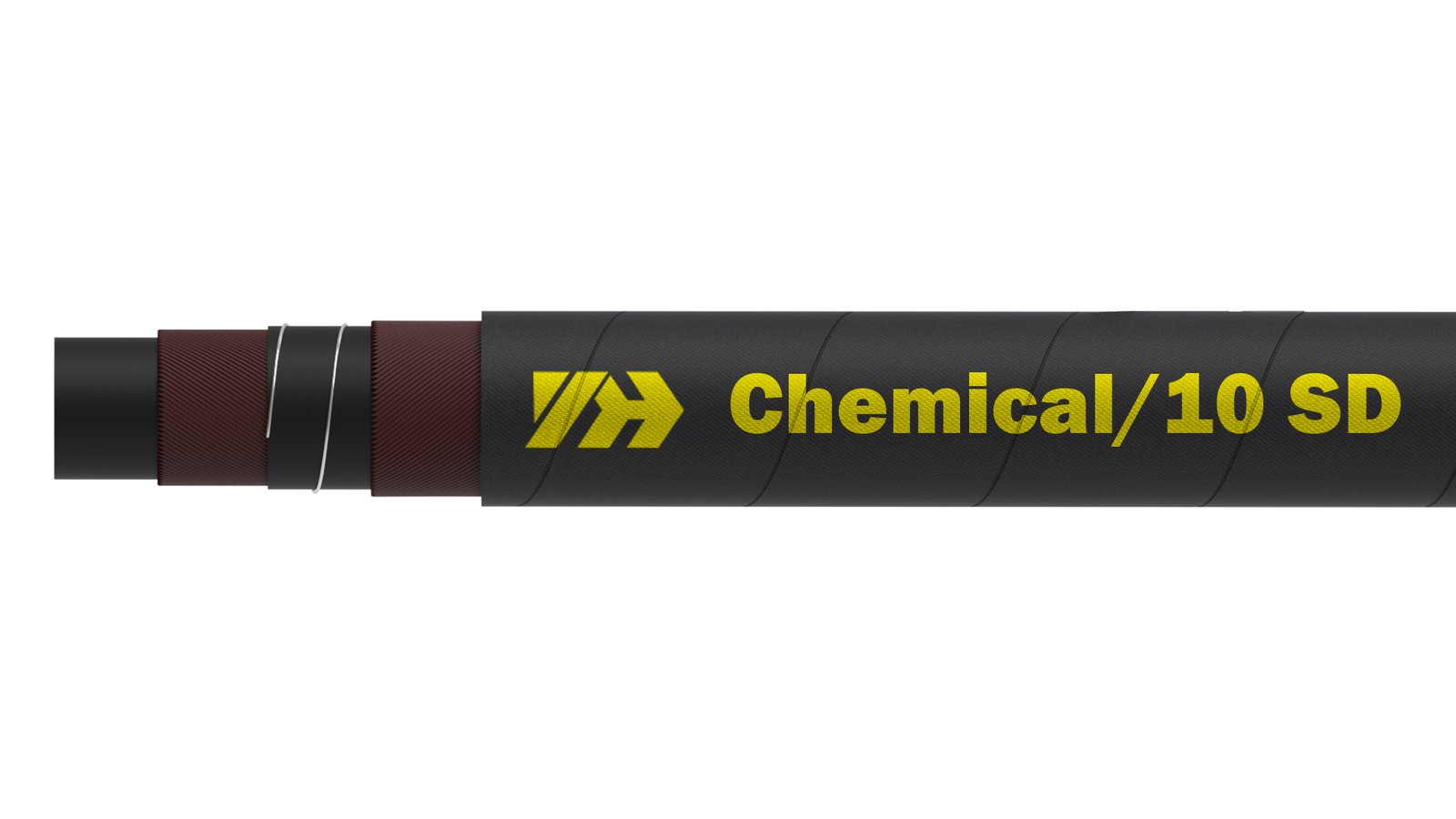

TUBE:
Black FKM rubber.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire.
COVER:
Black synthetic CR rubber, chemical, oil, ozone and weathering resistant.
TEMPERATURE RANGE:
From -35°C to + 100°C (-31°F to +212°F).
KEY FEATURES:
• Hardwall delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 40m.
APPLICATION & FLUIDS:
Delivery of aggressive chemicals and acids in high concentrations.
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-CH10SD-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 31.0 | 1.22 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 85 | 3.35 | 0.74 | 0.49 |
| YH-CH10SD-16 | -16 | 25 | 1” | - | - | - | - | - | - | 37.0 | 1.46 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 112 | 4.41 | 0.96 | 0.64 |
| YH-CH10SD-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 44.0 | 1.73 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 144 | 5.67 | 1.25 | 0.83 |
| YH-CH10SD-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 51.0 | 2.01 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 171 | 6.73 | 1.40 | 0.93 |
| YH-CH10SD-32 | -32 | 51 | 2” | - | - | - | - | - | - | 67.0 | 2.64 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 229 | 9.02 | 2.15 | 1.43 |
| YH-CH10SD-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 80.0 | 3.15 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 317 | 12.48 | 2.60 | 1.73 |
| YH-CH10SD-48 | -48 | 76 | 3” | - | - | - | - | - | - | 92.0 | 3.62 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 380 | 14.96 | 3.20 | 2.13 |
| YH-CH10SD-64 | -64 | 102 | 4” | - | - | - | - | - | - | 118.0 | 4.65 | 1.0 | 10 | 150 | 4.0 | 40 | 600 | 510 | 20.08 | 4.60 | 3.07 |
