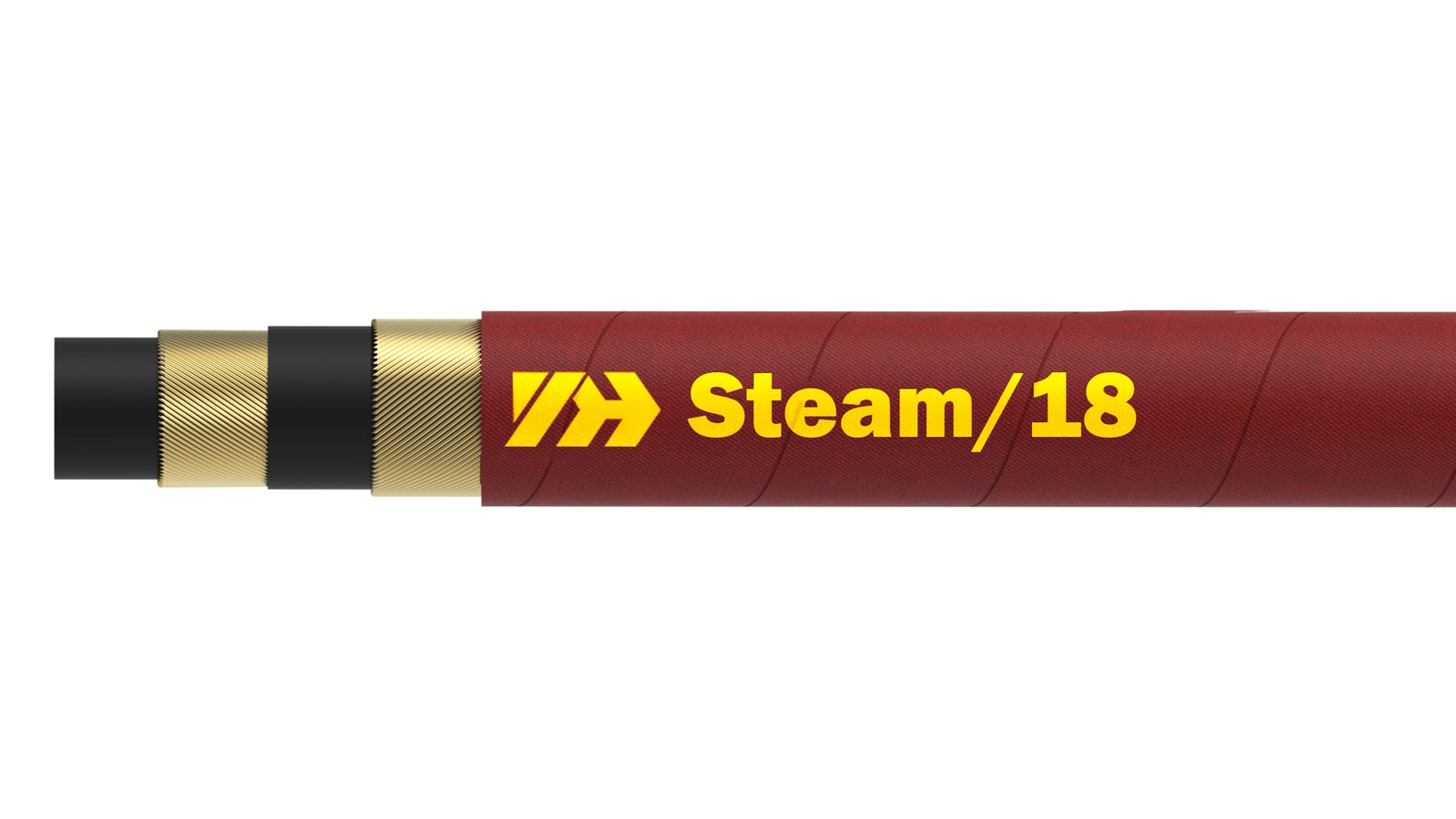

TUBE:
Black EPM rubber.
REINFORCEMENT:
High tensile steel reinforcement.
COVER:
Red synthetic EPM pink-pricked rubber, abrasion, weathering and ozone resistant.
TEMPERATURE RANGE:
From -40°C to + 210°C (-40°F to +410°F).
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 40m (DN12 to DN16); 61m (DN19 to DN102).
APPLICATION & FLUIDS:
Delivery of high pressure saturated steam.
Suitable for steam cleaning of tanks and pipelines in the petrochemical industry.
WORKING PRESSURE:
Maximum working pressures are based on 10:1 safety factor
(maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-ST18-08 | -8 | 12 | 1/2” | - | - | - | - | - | - | 25.0 | 0.98 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 120 | 4.72 | 0.53 | 0.35 |
| YH-ST18-10 | -10 | 16 | 5/8” | - | - | - | - | - | - | 30.0 | 1.18 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 155 | 6.10 | 0.75 | 0.50 |
| YH-ST18-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 33.0 | 1.30 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 185 | 7.28 | 0.78 | 0.52 |
| YH-ST18-16 | -16 | 25 | 1” | - | - | - | - | - | - | 40.0 | 1.57 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 240 | 9.45 | 1.03 | 0.69 |
| YH-ST18-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 48.0 | 1.89 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 330 | 12.99 | 1.14 | 0.94 |
| YH-ST18-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 54.0 | 2.13 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 390 | 15.35 | 1.78 | 1.19 |
| YH-ST18-32 | -32 | 51 | 2” | - | - | - | - | - | - | 69.0 | 2.72 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 520 | 20.47 | 2.58 | 1.72 |
| YH-ST18-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 81.0 | 3.19 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 640 | 25.20 | 3.16 | 2.11 |
| YH-ST18-48 | -48 | 76 | 3” | - | - | - | - | - | - | 94.0 | 3.70 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 745 | 29.33 | 4.02 | 2.68 |
| YH-ST18-64 | -64 | 102 | 4” | - | - | - | - | - | - | 122.0 | 4.80 | 1.8 | 18 | 270 | 18 | 180 | 2,700 | 990 | 38.98 | 6.22 | 4.15 |
