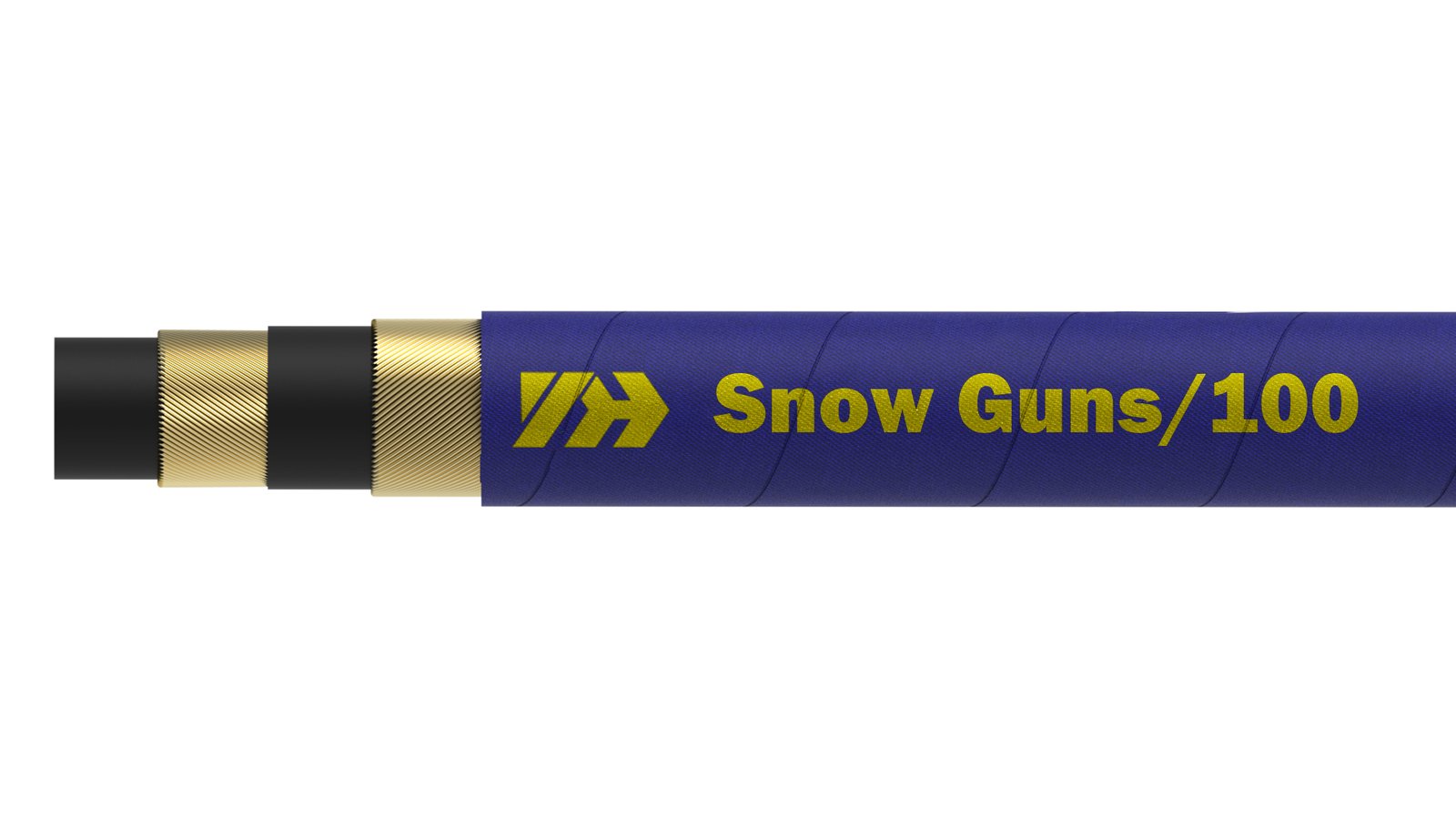

TUBE:
Black EPDM rubber.
REINFORCEMENT:
High tensile steel spirals.
COVER:
Blue, synthetic EPDM rubber; abrasion, weathering and ozone resistant.
TEMPERATURE RANGE:
From -40°C to + 120°C (-40°F to +248°F).
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Delivery hose for water in snow gun equipment.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor
(maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-SG100-16 | -16 | 25 | 1” | - | - | - | - | - | - | 40.0 | 1.57 | 10 | 100 | 1,500 | 25 | 250 | 3,750 | 100 | 3.94 | 1.30 | 0.87 |
| YH-SG100-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 47.0 | 1.85 | 10 | 100 | 1,500 | 25 | 250 | 3,750 | 140 | 5.51 | 1.74 | 1.16 |
| YH-SG100-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 54.0 | 2.13 | 10 | 100 | 1,500 | 25 | 250 | 3,750 | 170 | 6.69 | 2.25 | 1.50 |
