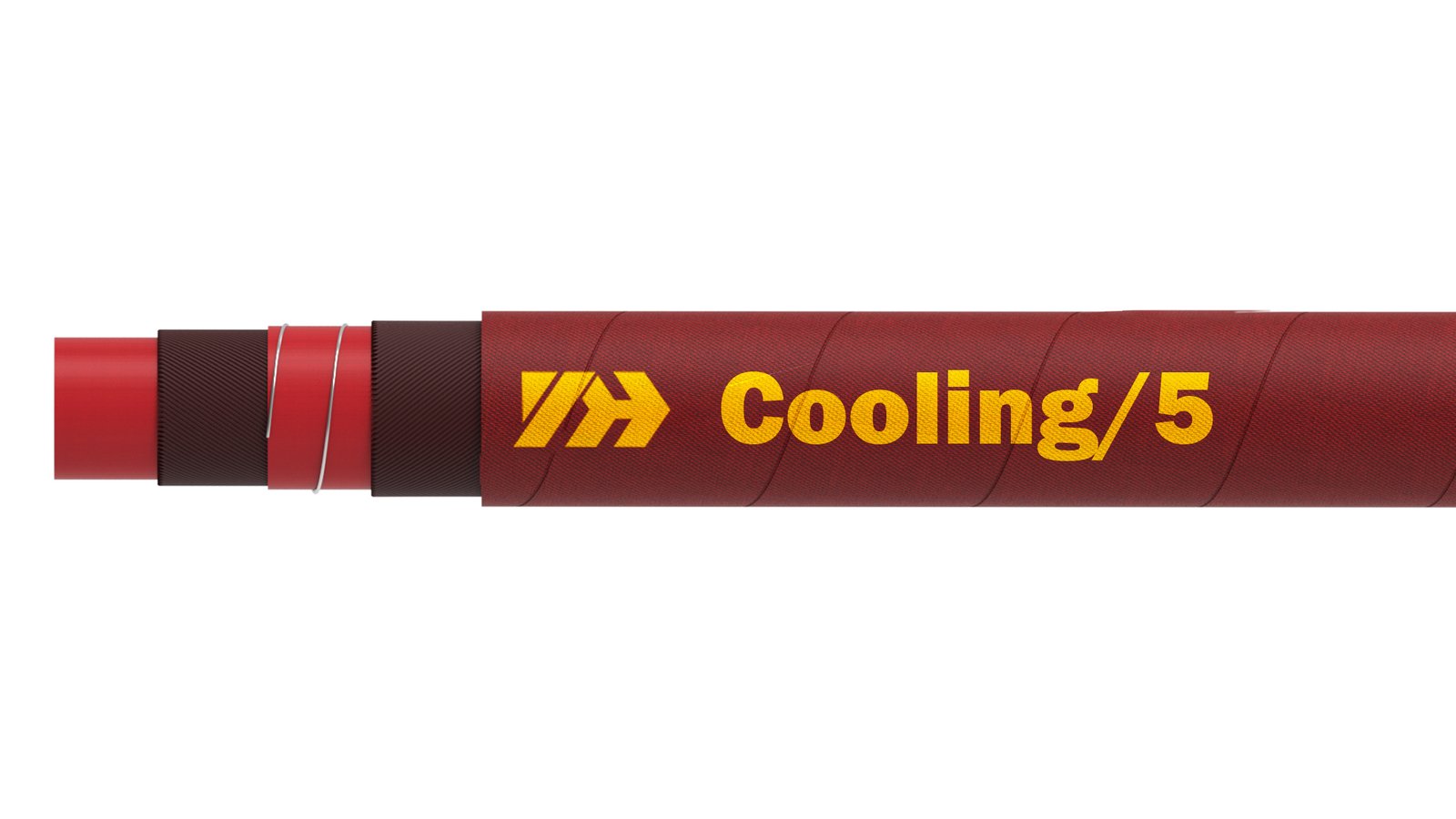

TUBE:
Red, VMQ silicone.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire.
COVER:
Red VMQ silicone, high temperature and weather resistance.
TEMPERATURE RANGE:
From -60°C to + 200°C (-76°F to +392°F).
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 40m (DN16 to DN76); 20m (DN102).
APPLICATION & FLUIDS:
Suction & delivery of hot air and water in engine cooling systems.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor
(maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-CL5-10 | -10 | 16 | 5/8” | - | - | - | - | - | - | 26.0 | 1.02 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 80 | 3.15 | 0.40 | 0.27 |
| YH-CL5-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 29.0 | 1.14 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 95 | 3.74 | 0.45 | 0.30 |
| YH-CL5-16 | -16 | 25 | 1” | - | - | - | - | - | - | 35.0 | 1.38 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 125 | 4.92 | 0.58 | 0.39 |
| YH-CL5-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 42.0 | 1.65 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 160 | 6.30 | 0.68 | 0.45 |
| YH-CL5-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 48.0 | 1.89 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 190 | 7.48 | 0.83 | 0.55 |
| YH-CL5-32 | -32 | 51 | 2” | - | - | - | - | - | - | 61.0 | 2.40 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 260 | 10.24 | 1.30 | 0.87 |
| YH-CL5-48 | -48 | 76 | 3” | - | - | - | - | - | - | 96.0 | 3.78 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 380 | 14.96 | 1.90 | 1.27 |
| YH-CL5-64 | -64 | 102 | 4” | - | - | - | - | - | - | 114.0 | 4.49 | 0.5 | 5 | 75 | 1.5 | 15 | 225 | 480 | 18.90 | 2.81 | 1.87 |
