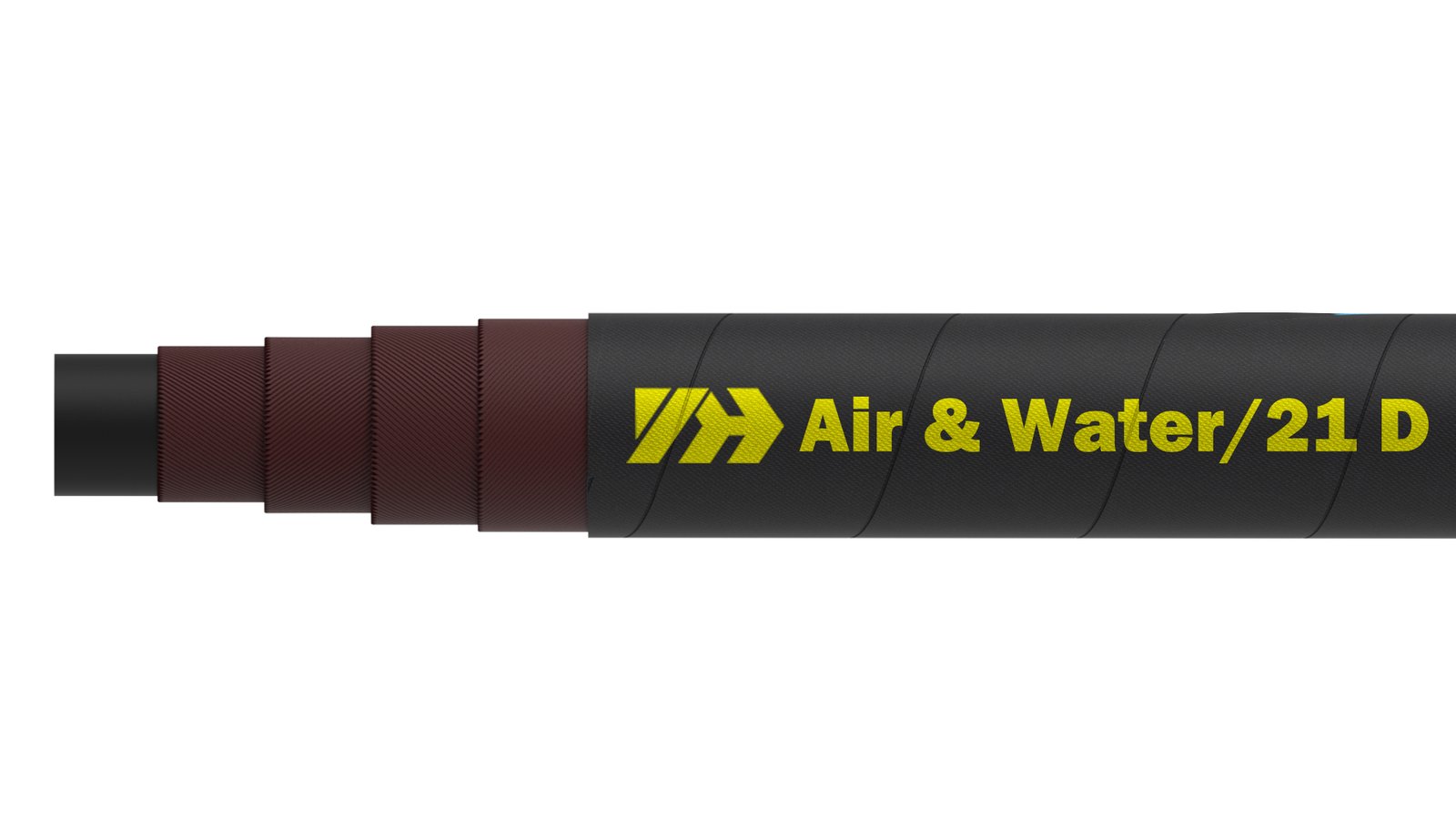

TUBE:
Black, smooth, synthetic SBR rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
TEMPERATURE RANGE:
From -35°C to + 80°C (-31°F to +176°F).
KEY FEATURES:
- Softwall delivery structure.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Water or compressed air, to be used in heavy duty mining, construction, shipyards, etc.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor
(maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH- AW21D-08 | -8 | 12 | 1/2” | - | - | - | - | - | - | 20.6 | 0.81 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 90 | 3.54 | 0.21 | 0.14 |
| YH- AW21D-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 31.6 | 1.24 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 110 | 4.33 | 0.46 | 0.31 |
| YH- AW21D-16 | -16 | 25 | 1” | - | - | - | - | - | - | 38.2 | 1.50 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 135 | 5.31 | 0.52 | 0.35 |
| YH- AW21D-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 45.0 | 1.77 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 165 | 6.50 | 0.66 | 0.44 |
| YH- AW21D-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 51.6 | 2.03 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 205 | 8.07 | 0.93 | 0.62 |
| YH- AW21D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 65.0 | 2.56 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 260 | 10.24 | 1.22 | 0.82 |
| YH- AW21D-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 78.9 | 3.11 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 360 | 14.17 | 1.58 | 1.06 |
| YH- AW21D-48 | -48 | 76 | 3” | - | - | - | - | - | - | 94.0 | 3.70 | 2.1 | 21 | 300 | 6.3 | 63 | 910 | 470 | 18.50 | 1.84 | 1.24 |
