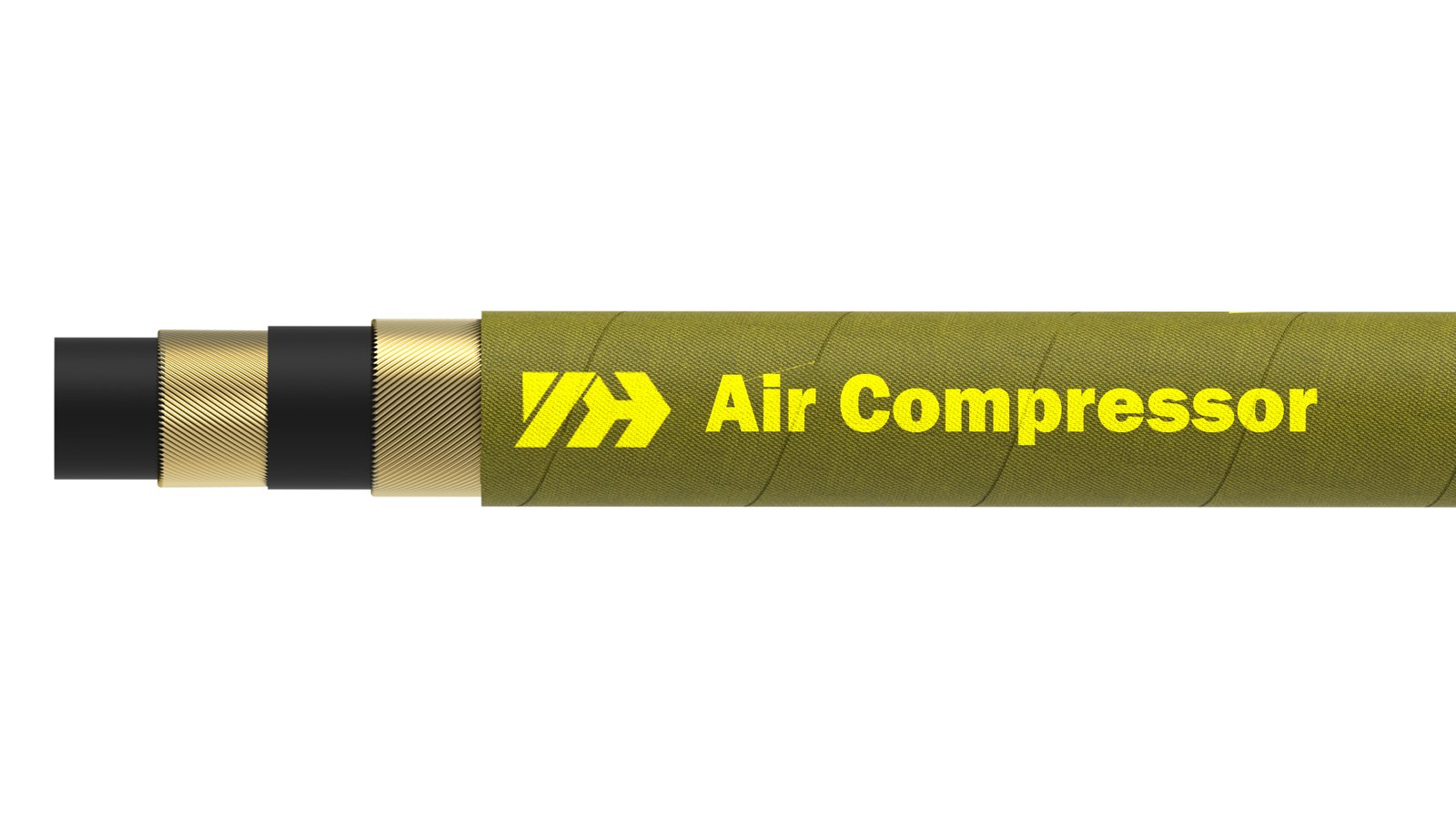

TUBE:
Black, smooth, synthetic SBR rubber.
REINFORCEMENT:
Two wire braids or multiple piles of high tensile steel wire spirals.
COVER:
Yellow synthetic NBR/PVC rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
TEMPERATURE RANGE:
From -35°C to + 80°C (-31°F to +176°F).
KEY FEATURES:
- Heavy duty softwall delivery structure.
- Robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
High pressure compressed air and oil traces, to be used in mining, construction, etc.
Typically used in compressed air systems and power transmission.
WORKING PRESSURE:
Maximum working pressures are based on 4:1 (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-AC-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 31.4 | 1.24 | 4.5 | 45 | 650 | 18 | 180 | 2,160 | 95 | 3.74 | 0.78 | 0.52 |
| YH-AC-16 | -16 | 25 | 1” | - | - | - | - | - | - | 37.8 | 1.49 | 4.5 | 45 | 650 | 18 | 180 | 2,160 | 125 | 4.92 | 1.01 | 0.68 |
| YH-AC-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 44.8 | 1.76 | 4.5 | 45 | 650 | 18 | 180 | 2,160 | 160 | 6.30 | 1.28 | 0.86 |
| YH-AC-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 51.2 | 2.02 | 4.5 | 45 | 650 | 18 | 180 | 2,160 | 190 | 7.48 | 1.53 | 1.03 |
| YH-AC-32 | -32 | 51 | 2” | - | - | - | - | - | - | 65.0 | 2.56 | 4.5 | 45 | 650 | 18 | 180 | 2,160 | 255 | 10.04 | 2.27 | 1.53 |
| YH-AC-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 79.4 | 2.13 | 3.5 | 35 | 500 | 14 | 140 | 2,030 | 315 | 12.40 | 2.91 | 1.93 |
| YH-AC-48 | -48 | 76 | 3” | - | - | - | - | - | - | 94.2 | 3.71 | 3.5 | 35 | 500 | 14 | 140 | 2,030 | 380 | 14.96 | 4.06 | 2.73 |
| YH-AC-64 | -64 | 102 | 4” | - | - | - | - | - | - | 122.0 | 4.80 | 3.5 | 35 | 500 | 14 | 140 | 2,030 | 510 | 20.08 | 5.80 | 3.85 |
