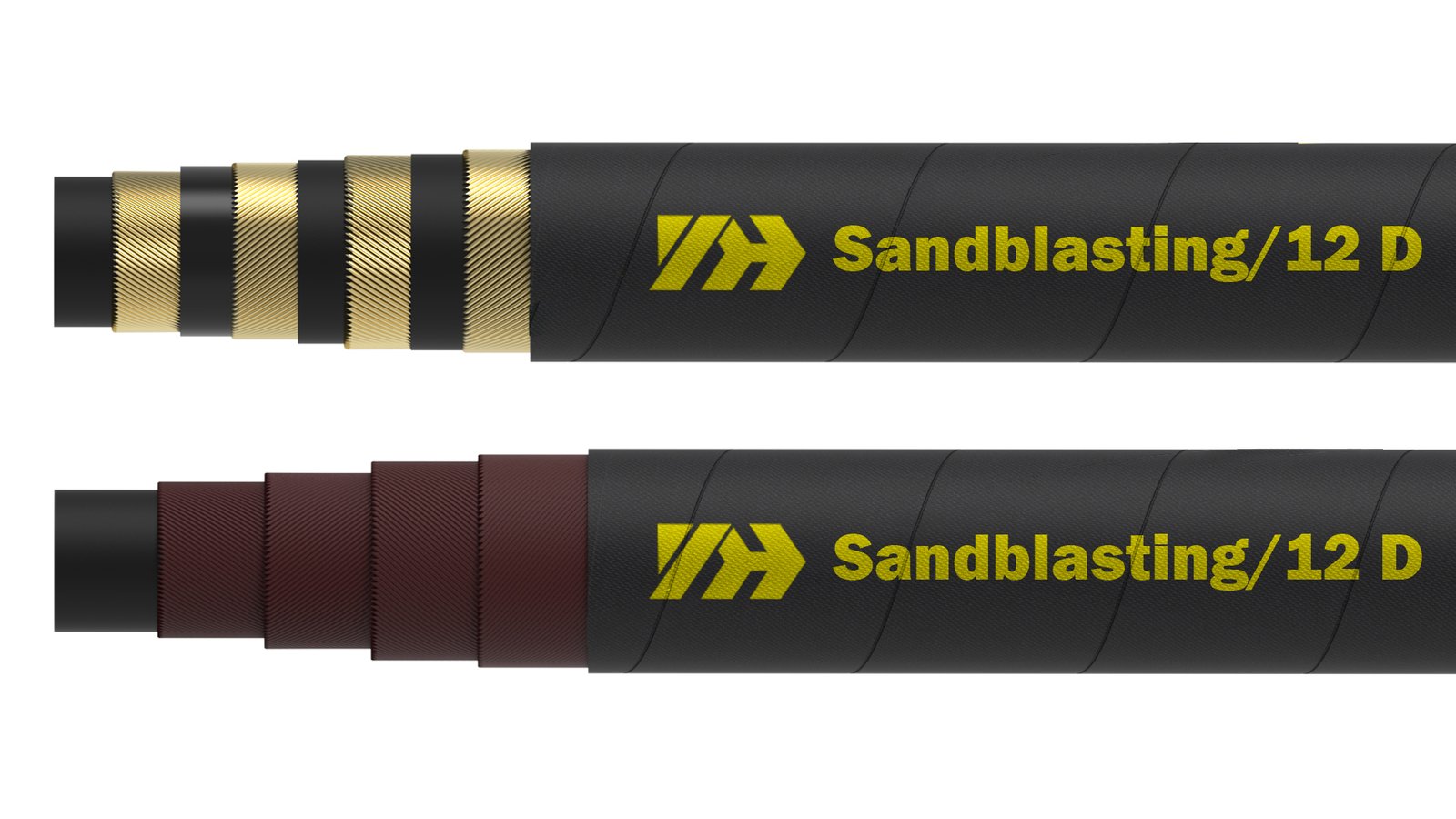

TUBE:
Black, smooth, synthetic NR or BR, SBR rubber.
REINFORCEMENT:
High tensile synthetic cord or steel wire.
COVER:
Black synthetic NR or SBR rubber, long lasting, weathering and ozone resistant.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
KEY FEATURES:
• Softwall delivery structure.
• Highly robust construction.
• Long life in extreme conditions.
• Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Sand blasting or transfer of highly abrasive materials such as grit and gravel.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-SB12D-12 | -12 | 19 | 3/4” | - | - | - | - | - | - | 32.0 | 1.26 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 0.66 | 0.44 |
| YH-SB12D-16 | -16 | 25 | 1” | - | - | - | - | - | - | 38.4 | 1.51 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 0.89 | 0.60 |
| YH-SB12D-20 | -20 | 32 | 1-1/4” | - | - | - | - | - | - | 47.8 | 1.88 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 1.29 | 0.87 |
| YH-SB12D-24 | -24 | 38 | 1-1/2” | - | - | - | - | - | - | 55.0 | 2.17 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 1.57 | 1.05 |
| YH-SB12D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 69.8 | 2.75 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 2.39 | 1.61 |
| YH-SB12D-40 | -40 | 63 | 2-1/2“ | - | - | - | - | - | - | 83.6 | 3.29 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 2.98 | 2.00 |
| YH-SB12D-48 | -48 | 76 | 3“ | - | - | - | - | - | - | 99.2 | 3.91 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 4.30 | 2.89 |
| YH-SB12D-64 | -64 | 102 | 4“ | - | - | - | - | - | - | 126.4 | 4.98 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 5.74 | 3.86 |
| YH-SB12D-80 | -80 | 127 | 5“ | - | - | - | - | - | - | 151.4 | 5.96 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 7.00 | 4.70 |
| YH-SB12D-96 | -96 | 152 | 6“ | - | - | - | - | - | - | 177.6 | 6.99 | 1.2 | 12 | 170 | 3.6 | 36 | 510 | - | - | 8.87 | 5.96 |
