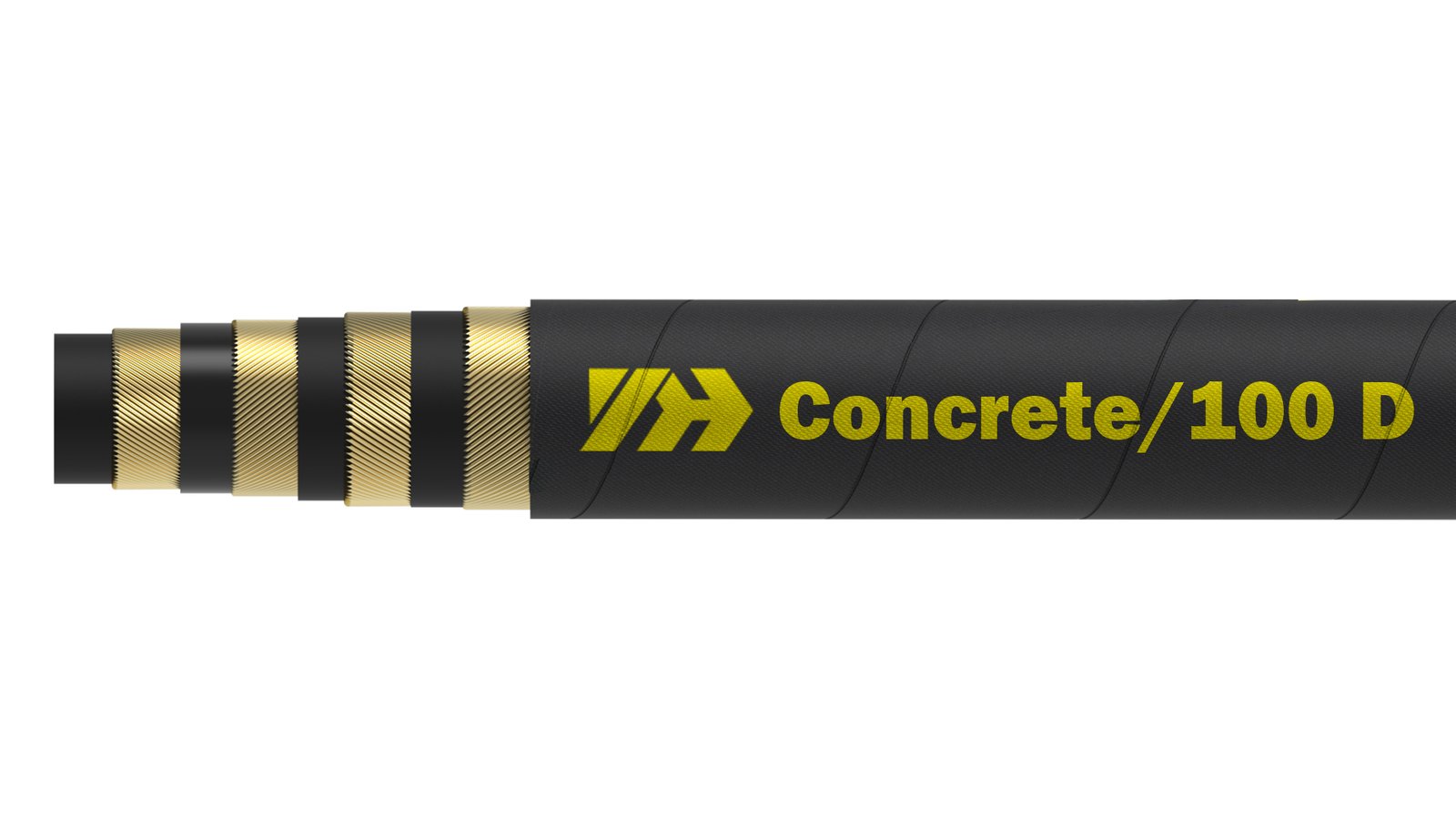

TUBE:
Black, anti-static NR/SBR rubber, abrasion resistant thick tube.
REINFORCEMENT:
High tensile steel cord.
COVER:
Black, anti-static NR/SBR rubber, abrasion and weathering resistant.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
KEY FEATURES:
• Hardwall delivery structure.
• Robust hose structure for longer life in severe applications.
• High abrasion resistance.
• Integrated crimped fitting solution.
• Long length assemblies available – Max length: 40m.
APPLICATION & FLUIDS:
High-pressure pumping of concrete, plaster, bentonite etc. in construction.
WORKING PRESSURE:
Maximum working pressures are based on 2.5:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-C100D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 70.6 | 2.78 | 10 | 100 | 1,450 | 25 | 250 | 3,620 | 250 | 9.84 | 2.99 | 2.01 |
| YH-C100D-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 83.0 | 3.27 | 10 | 100 | 1,450 | 25 | 250 | 3,620 | 320 | 12.59 | 3.68 | 2.48 |
| YH-C100D-48 | -48 | 76 | 3“ | - | - | - | - | - | - | 95.4 | 3.76 | 10 | 100 | 1,450 | 25 | 250 | 3,620 | 380 | 14.96 | 4.40 | 2.96 |
| YH-C100D-56 | -56 | 89 | 3-1/2” | - | - | - | - | - | - | 109.6 | 4.31 | 10 | 100 | 1,450 | 25 | 250 | 3,620 | 450 | 17.71 | 5.35 | 3.60 |
| YH-C100D-64 | -64 | 102 | 4” | - | - | - | - | - | - | 122.5 | 4.82 | 10 | 100 | 1,450 | 25 | 250 | 3,620 | 500 | 19.68 | 6.36 | 4.28 |
| YH-C100D-80 | -80 | 127 | 5” | - | - | - | - | - | - | 153.0 | 6.02 | 10 | 100 | 1,450 | 25 | 250 | 3,620 | 630 | 24.80 | 11.00 | 7.39 |
