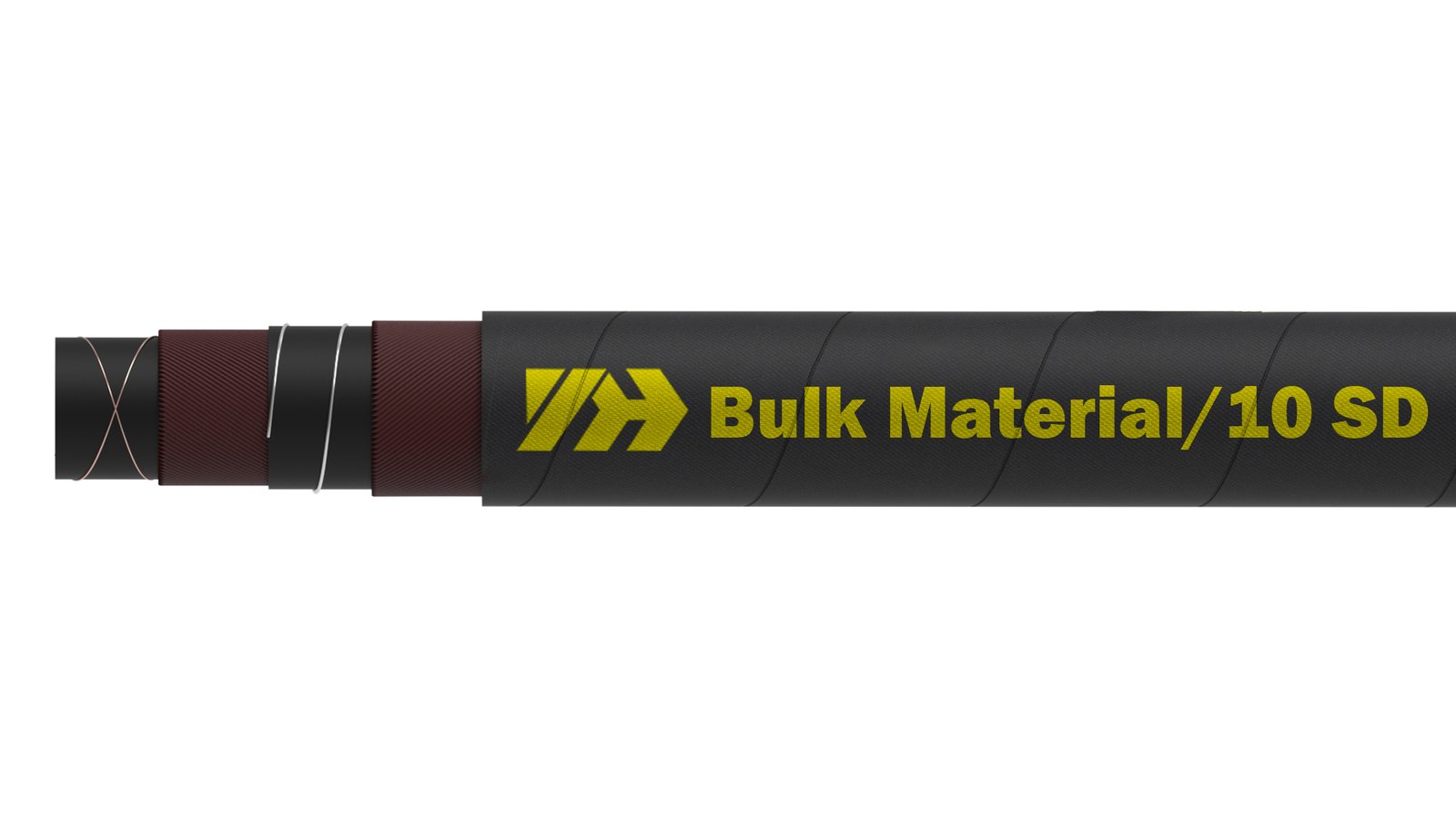

TUBE:
Black, NR/SBR rubber, abrasion resistant thick tube.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black, NR/SBR rubber, abrasion resistant.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
KEY FEATURES:
• Hardwall suction & delivery structure.
• High resistance to continuous abrasion.
• Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Dry and liquid abrasive mix transfer.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-BM10SD-32 | -32 | 51 | 2” | - | - | - | - | - | - | 69.6 | 3.94 | 1..0 | 10 | 150 | 3.0 | 30 | 450 | 200 | 7.87 | 2.39 | 1.60 |
| YH-BM10SD-40 | -40 | 63 | 2-1/2” | - | - | - | - | - | - | 85.5 | 4.41 | 1..0 | 10 | 150 | 3.0 | 30 | 450 | 250 | 9.84 | 3.63 | 2.44 |
| YH-BM10SD-48 | -48 | 76 | 3“ | - | - | - | - | - | - | 98.4 | 5.39 | 1..0 | 10 | 150 | 3.0 | 30 | 450 | 300 | 11.81 | 4.59 | 3.08 |
| YH-BM10SD-64 | -64 | 102 | 4” | - | - | - | - | - | - | 124.6 | 6.38 | 1..0 | 10 | 150 | 3.0 | 30 | 450 | 450 | 17.72 | 6.01 | 4.04 |
| YH-BM10SD-80 | -80 | 127 | 5” | - | - | - | - | - | - | 149.0 | 8.39 | 1..0 | 10 | 150 | 3.0 | 30 | 450 | 600 | 23.62 | 7.25 | 3.45 |
