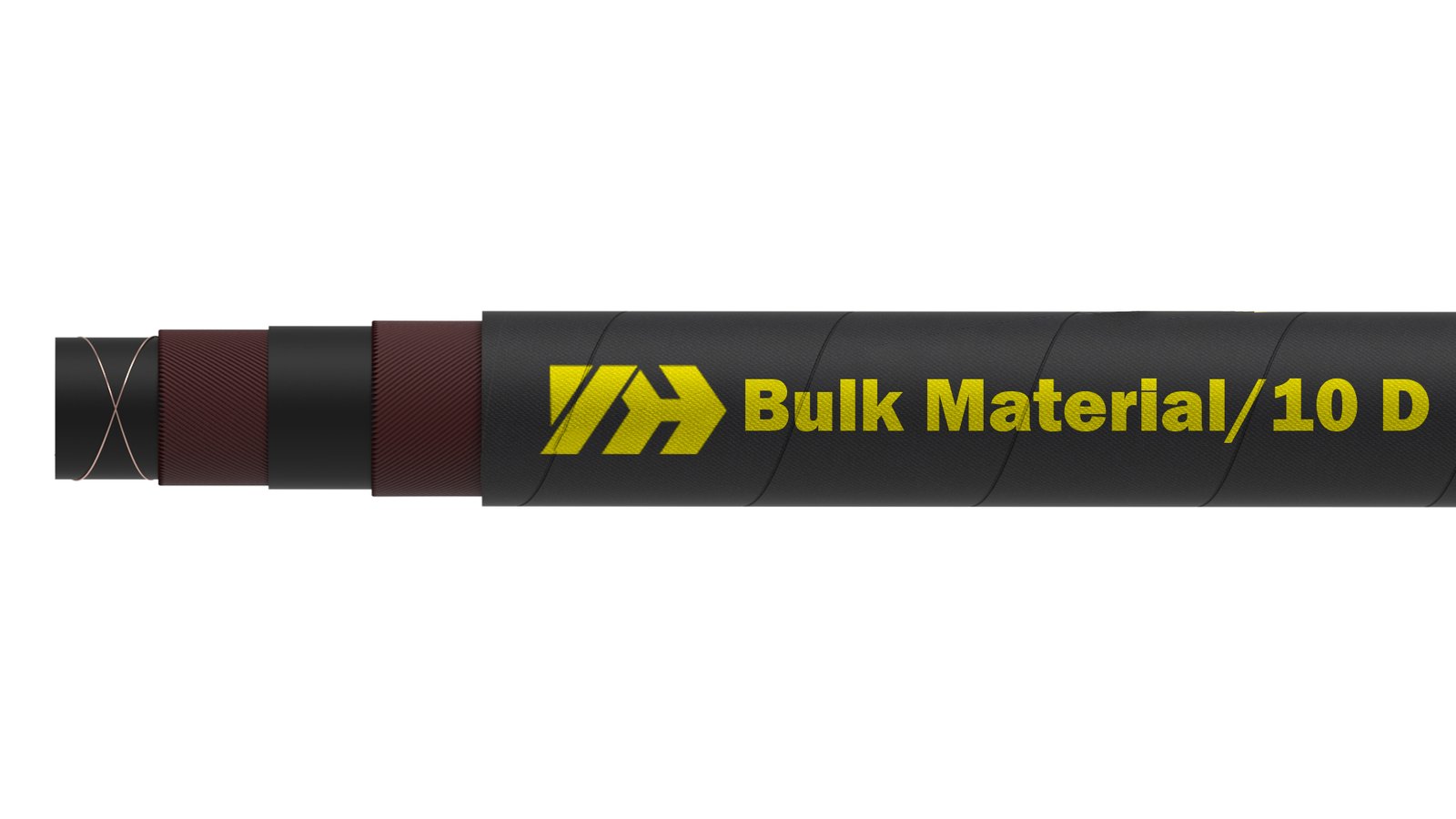

TUBE:
Black, NR/SBR rubber, abrasion resistant thick tube.
REINFORCEMENT:
High tensile synthetic cord with 2 crossing copper wires for grounding.
COVER:
Black, NR/SBR rubber, abrasion resistant.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
KEY FEATURES:
• Softwall delivery structure.
• High resistance to continuous abrasion.
• Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Dry and liquid abrasive mix transfer.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-BM10D-32 | -32 | 51 | 2” | - | - | - | - | - | - | 67.8 | 2.67 | 1..0 | 10 | 150 | 3.0 | 30 | 450 | - | - | 1.65 | 1.11 |
| YH-BM10D-48 | -48 | 76 | 3“ | - | - | - | - | - | - | 96.4 | 3.80 | 1..0 | 10 | 150 | 3.0 | 30 | 450 | - | - | 3.15 | 2.11 |
