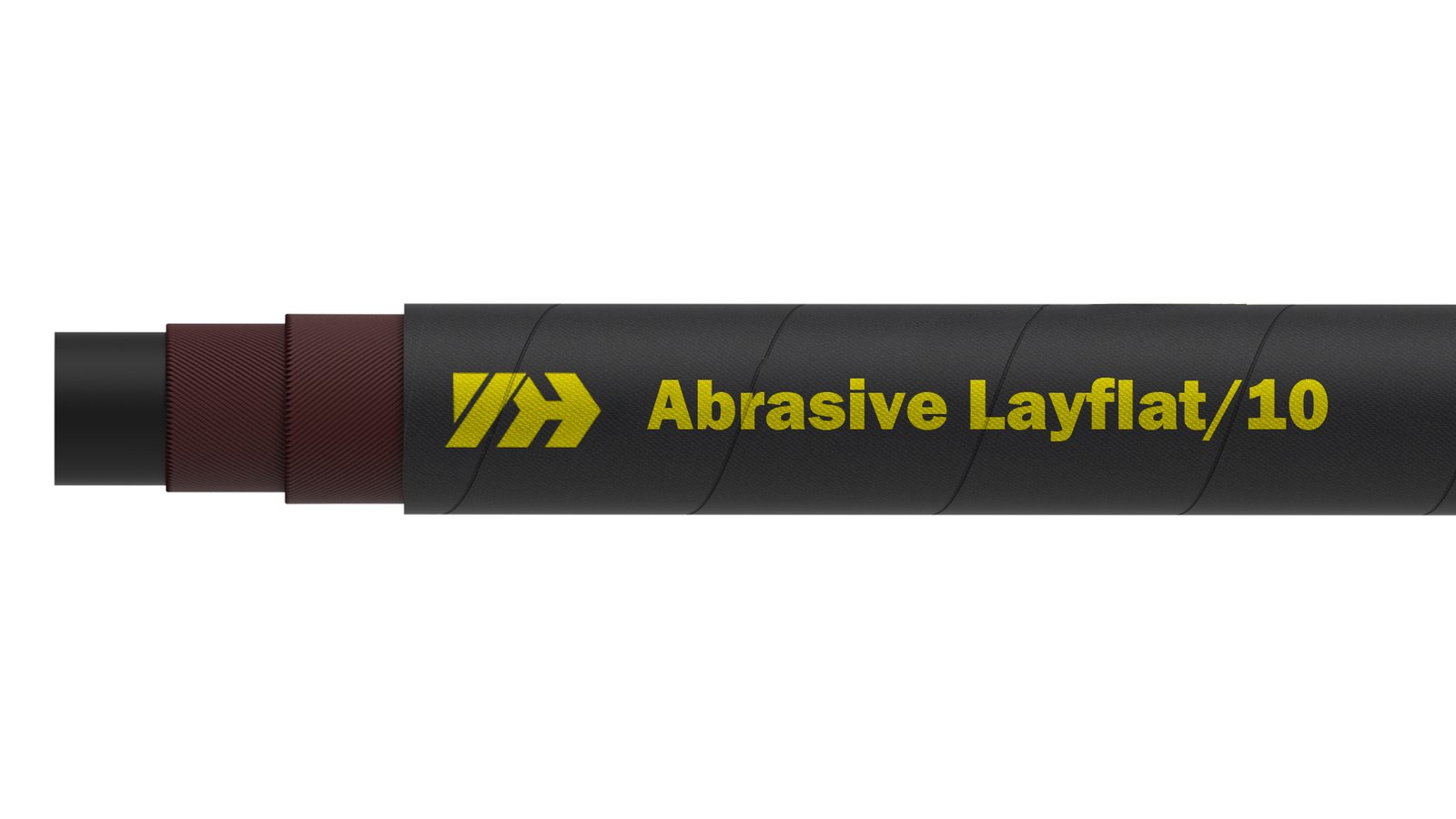

TUBE:
Black NR/SBR rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black synthetic SBR/NR/PVC rubber, anti-static, abrasion and
weathering resistant.
TEMPERATURE RANGE:
From -40°C to + 70°C (-40°F to +158°F).
KEY FEATURES:
• Layflat delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m (up to
DN152); 40m (DN203).
APPLICATION & FLUIDS:
Delivery hose for dry abrasive materials, concrete, sand and gravel.
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-AL-57 | -57 | 90 | 3-35/64” | - | - | - | - | - | - | 100.0 | 3.94 | 0.6 | 6 | 90 | 1.8 | 18 | 270 | - | - | 1.25 | 0.83 |
| YH-AL-64 | -64 | 102 | 4” | - | - | - | - | - | - | 112.0 | 4.41 | 0.4 | 4 | 60 | 1.2 | 12 | 180 | - | - | 1.39 | 0.93 |
| YH-AL-80 | -80 | 127 | 5” | - | - | - | - | - | - | 137.0 | 5.39 | 0.4 | 4 | 60 | 1.2 | 12 | 180 | - | - | 1.72 | 1.15 |
| YH-AL-96 | -96 | 152 | 6” | - | - | - | - | - | - | 162.0 | 6.38 | 0.4 | 4 | 60 | 1.2 | 12 | 180 | - | - | 2.05 | 1.37 |
| YH-AL-128 | -128 | 203 | 8” | - | - | - | - | - | - | 213.0 | 8.39 | 0.4 | 4 | 60 | 1.2 | 12 | 180 | - | - | 2.74 | 1.83 |
