Product Description:

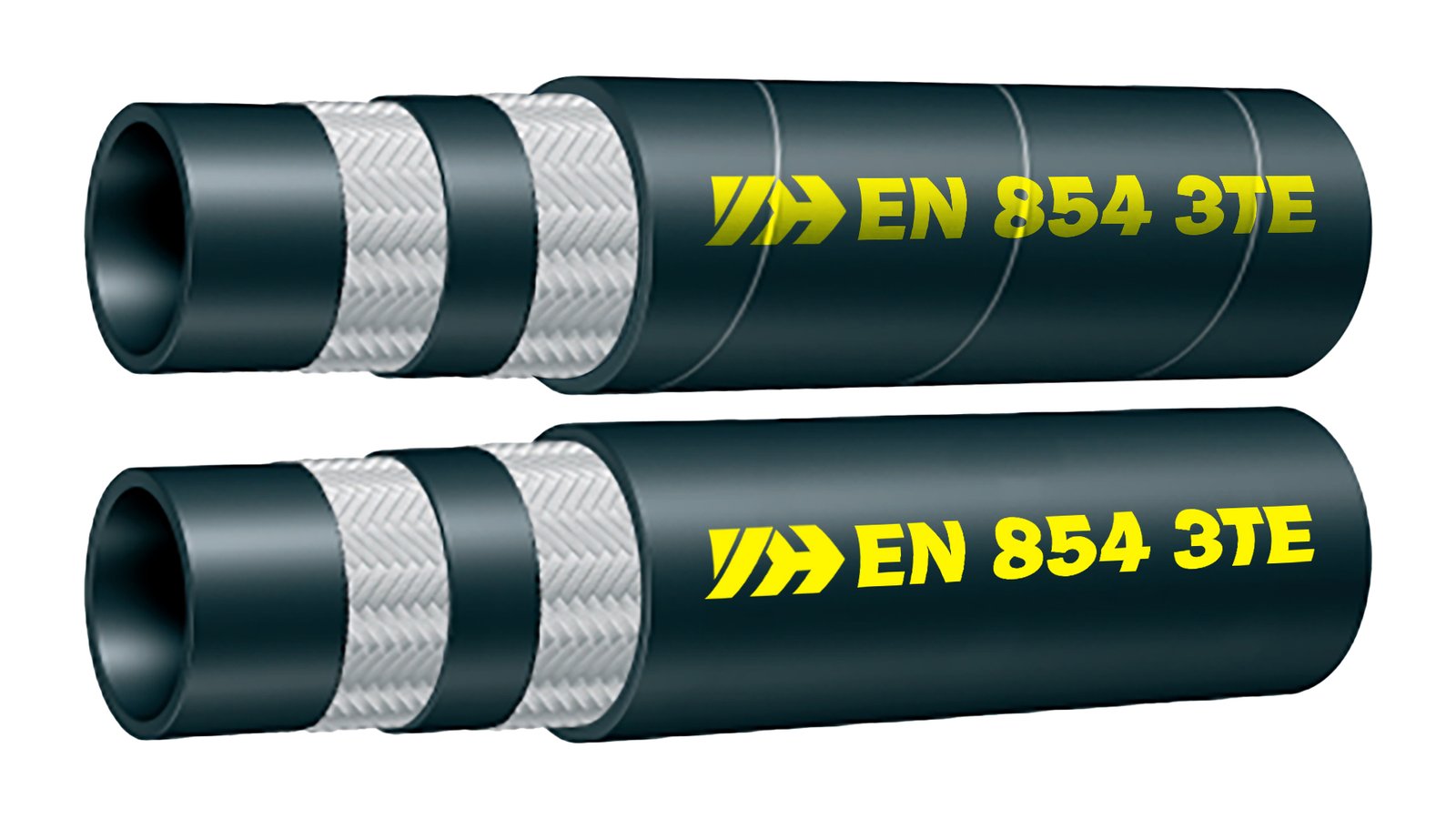

EN 854 3TE is a premium two textile braid reinforced hydraulic hose engineered for dependable performance in various hydraulic applications. It features an oil and water-resistant synthetic rubber inner tube, two layers of high-strength textile braid reinforcement, and a durable outer cover that resists oil, abrasion, and ozone. Its compact and flexible design ensures smooth fluid transmission and easy installation even in limited spaces, providing lasting reliability for mobile and industrial equipment.
Construction:
Tube:
oil-resistant synthetic rubber
Reinforcement:
two textile braids
Cover:
oil, water, heat, abrasion, weather, and ozone-resistant synthetic rubber
Temperature Range:
-40°C to +100°C (-40°F to +212°F), intermittent up to +125°C (+257°F)
Applications:
Suitable for petroleum-based and approved water-based hydraulic fluids in mobile and industrial systems.
Typical applications include:
• Agricultural machinery
• Construction and industrial equipment
• Hydraulic circuits with higher performance requirements
• Mobile vehicles and machinery
Standards:
Compact & Lightweight: Ideal for space-limited installations.
• Triple Textile Reinforcement: Superior strength and flexibility.
• Durable Inner Tube: Oil and water-resistant synthetic rubber.
• Weather-Resistant Outer Cover: Protects against abrasion and ozone.
• Wide Operating Temperature Range: -40°C to +100°C with petroleum fluids.
• Enhanced Flexibility: Compact design for easy routing.
• Long Service Life: Reliable for high-performance hydraulic systems.
• Customizable Assemblies: Various lengths and fittings available.
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-EN854-3TE-03 | -3 | 5 | 3/16” | 4.4 | 0.17 | 5.2 | 0.20 | 12.0 | 0.47 | 13.6 | 0.54 | 16.0 | 160 | 2,320 | 64.0 | 640 | 9,280 | 40 | 1.57 | 0.130 | 0.09 |
| YH-EN854-3TE-04 | -4 | 6 | 1/4” | 5.9 | 0.23 | 6.9 | 0.27 | 13.6 | 0.54 | 15.2 | 0.60 | 14.5 | 145 | 2,103 | 58.0 | 580 | 8,410 | 45 | 1.77 | 0.150 | 0.10 |
| YH-EN854-3TE-05 | -5 | 8 | 5/16” | 7.4 | 0.29 | 8.4 | 0.33 | 16.1 | 0.63 | 17.7 | 0.70 | 13.0 | 130 | 1,885 | 52.0 | 520 | 7,540 | 55 | 2.17 | 0.210 | 0.14 |
| YH-EN854-3TE-06 | -6 | 10 | 3/8” | 9.0 | 0.35 | 10.0 | 0.39 | 17.7 | 0.70 | 19.3 | 0.76 | 11.0 | 110 | 1,595 | 44.0 | 440 | 6,380 | 70 | 2.76 | 0.230 | 0.15 |
| YH-EN854-3TE-08 | -8 | 12 | 1/2” | 12.1 | 0.48 | 13.3 | 0.52 | 20.7 | 0.81 | 22.7 | 0.89 | 9.3 | 93 | 1,349 | 37.2 | 372 | 5,390 | 85 | 3.35 | 0.290 | 0.19 |
| YH-EN854-3TE-10 | -10 | 16 | 5/8” | 15.3 | 0.60 | 16.5 | 0.65 | 24.9 | 0.98 | 26.9 | 1.06 | 8.0 | 80 | 1,160 | 32.0 | 320 | 4,640 | 105 | 4.13 | 0.395 | 0.27 |
| YH-EN854-3TE-12 | -12 | 19 | 3/4” | 18.2 | 0.72 | 19.8 | 0.78 | 28.0 | 1.10 | 30.0 | 1.18 | 7.0 | 70 | 1,015 | 28.0 | 280 | 4,060 | 130 | 5.12 | 0.455 | 0.31 |
| YH-EN854-3TE-16 | -16 | 25 | 1” | 24.6 | 0.97 | 26.2 | 1.03 | 34.4 | 1.35 | 37.4 | 1.47 | 5.5 | 55 | 798 | 22.0 | 220 | 3,190 | 150 | 5.91 | 0.580 | 0.39 |
| YH-EN854-3TE-20 | -20 | 31 | 1-1/4” | 30.8 | 1.21 | 32.8 | 1.29 | 40.8 | 1.61 | 43.8 | 1.72 | 4.5 | 45 | 653 | 18.0 | 180 | 2,610 | 190 | 7.48 | 0.740 | 0.50 |
| YH-EN854-3TE-24 | -24 | 38 | 1-1/2” | 37.1 | 1.46 | 39.1 | 1.54 | 47.6 | 1.87 | 51.6 | 2.03 | 4.0 | 40 | 580 | 16.0 | 160 | 2,320 | 240 | 9.45 | 0.920 | 0.62 |
| YH-EN854-3TE-32 | -32 | 51 | 2” | 49.8 | 1.96 | 51.8 | 2.04 | 60.3 | 2.37 | 64.3 | 2.53 | 3.3 | 33 | 479 | 13.2 | 132 | 1,910 | 300 | 11.81 | 1.140 | 0.77 |
