Product Description:

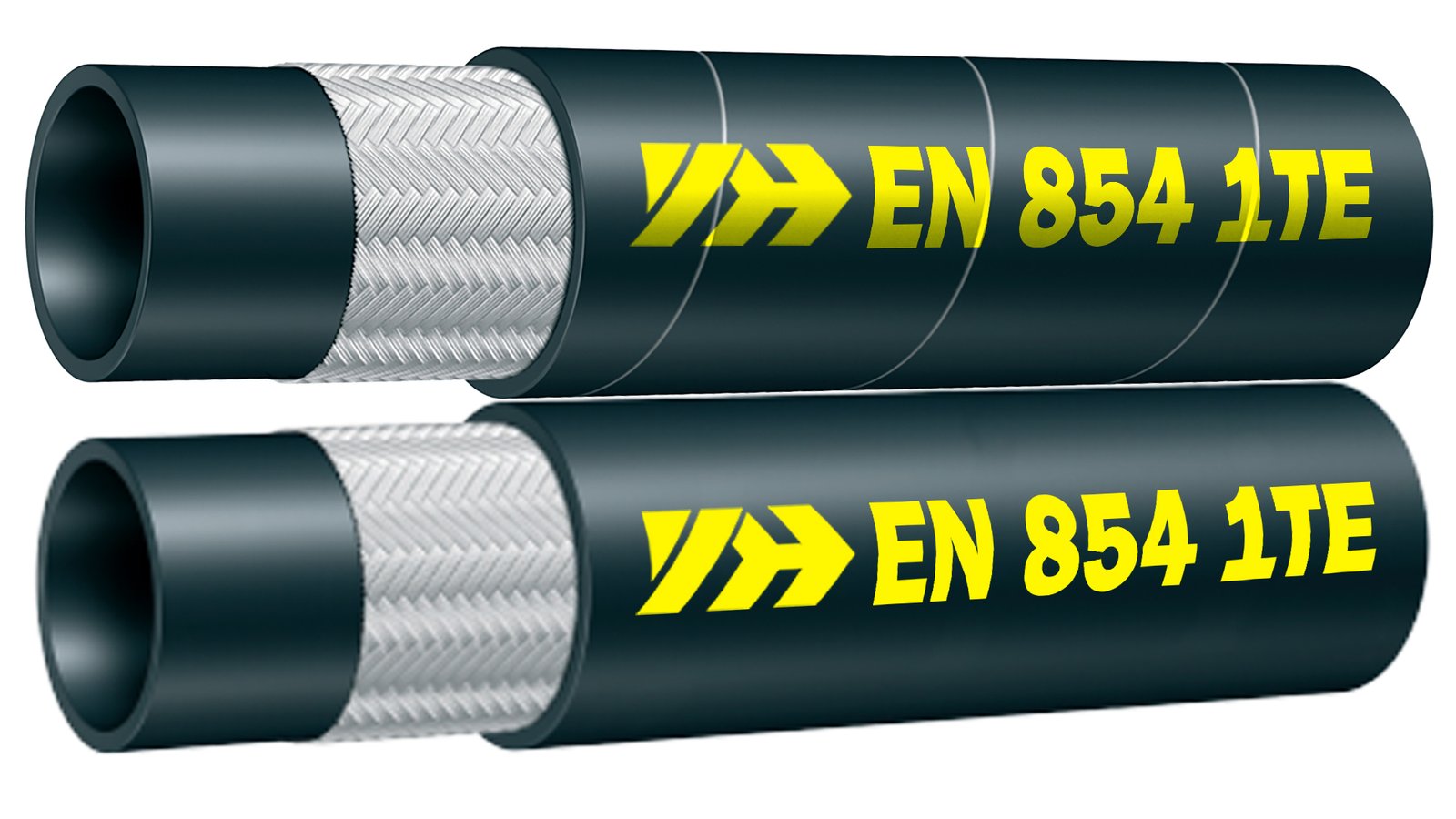

The EN 854 1TE textile reinforced hydraulic hose is designed for reliable performance in low-pressure hydraulic systems. Constructed with an oil-resistant synthetic rubber tube and a strong textile braid, it ensures flexibility, durability, and dependable resistance to abrasion, oils, fuels, and harsh environmental conditions. Ideal for hydraulic control lines and fluid delivery, this hose provides long-lasting service and consistent performance where reliability matters most.
Construction:
Tube:
oil-resistant synthetic rubber
Reinforcement:
one textile braid
Cover:
oil, water, heat, abrasion, weather, and ozone-resistant synthetic rubber
Temperature Range:
-40°C to +100°C (-40°F to +212°F), intermittent up to +125°C (+257°F)
Applications:
Suitable for petroleum-based and approved water-based hydraulic fluids in mobile and industrial systems.
Typical applications include:
• Agricultural machinery
• Light construction equipment
• Industrial hydraulic circuits with limited space
• Mobile vehicles and machinery
Key Features:
Compact & Lightweight: Ideal for tight installations.
• Single Textile Reinforcement: Provides strength and flexibility.
• Durable Inner Tube: Oil and water-resistant synthetic rubber.
• Weather-Resistant Outer Cover: Protects against abrasion and ozone.
• Wide Operating Temperature Range: -40°C to +100°C with petroleum fluids.
• Enhanced Flexibility: Small bend radius for easy routing.
• Long Service Life: Reliable performance in low-pressure hydraulic systems.
• Customizable Assemblies: Various lengths and fittings available.
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-EN854-1TE-03 | -3 | 5 | 3/16” | 4.4 | 0.17 | 5.2 | 0.20 | 10.0 | 0.39 | 11.6 | 0.46 | 2.5 | 25 | 360 | 10 | 100 | 1,450 | 35 | 1.38 | 0.093 | 0.06 |
| YH-EN854-1TE-04 | -4 | 6 | 1/4” | 5.9 | 0.23 | 6.9 | 0.27 | 11.6 | 0.46 | 13.2 | 0.52 | 2.5 | 25 | 360 | 10 | 100 | 1,450 | 45 | 1.77 | 0.114 | 0.08 |
| YH-EN854-1TE-05 | -5 | 8 | 5/16” | 7.4 | 0.29 | 8.4 | 0.33 | 13.1 | 0.52 | 14.7 | 0.58 | 2.0 | 20 | 290 | 8 | 80 | 1,160 | 65 | 2.56 | 0.133 | 0.09 |
| YH-EN854-1TE-06 | -6 | 10 | 3/8” | 9.0 | 0.35 | 10.0 | 0.39 | 14.7 | 0.58 | 16.3 | 0.64 | 2.0 | 20 | 290 | 8 | 80 | 1,160 | 75 | 2.95 | 0.150 | 0.10 |
| YH-EN854-1TE-08 | -8 | 12 | 1/2” | 12.1 | 0.48 | 13.3 | 0.52 | 17.7 | 0.70 | 19.7 | 0.78 | 1.6 | 16 | 230 | 6.4 | 64 | 920 | 90 | 3.54 | 0.190 | 0.13 |
| YH-EN854-1TE-10 | -10 | 16 | 5/8” | 15.3 | 0.60 | 16.5 | 0.65 | 21.9 | 0.86 | 23.9 | 0.94 | 1.6 | 16 | 230 | 6.4 | 64 | 920 | 115 | 4.53 | 0.277 | 0.19 |
