Product Description:

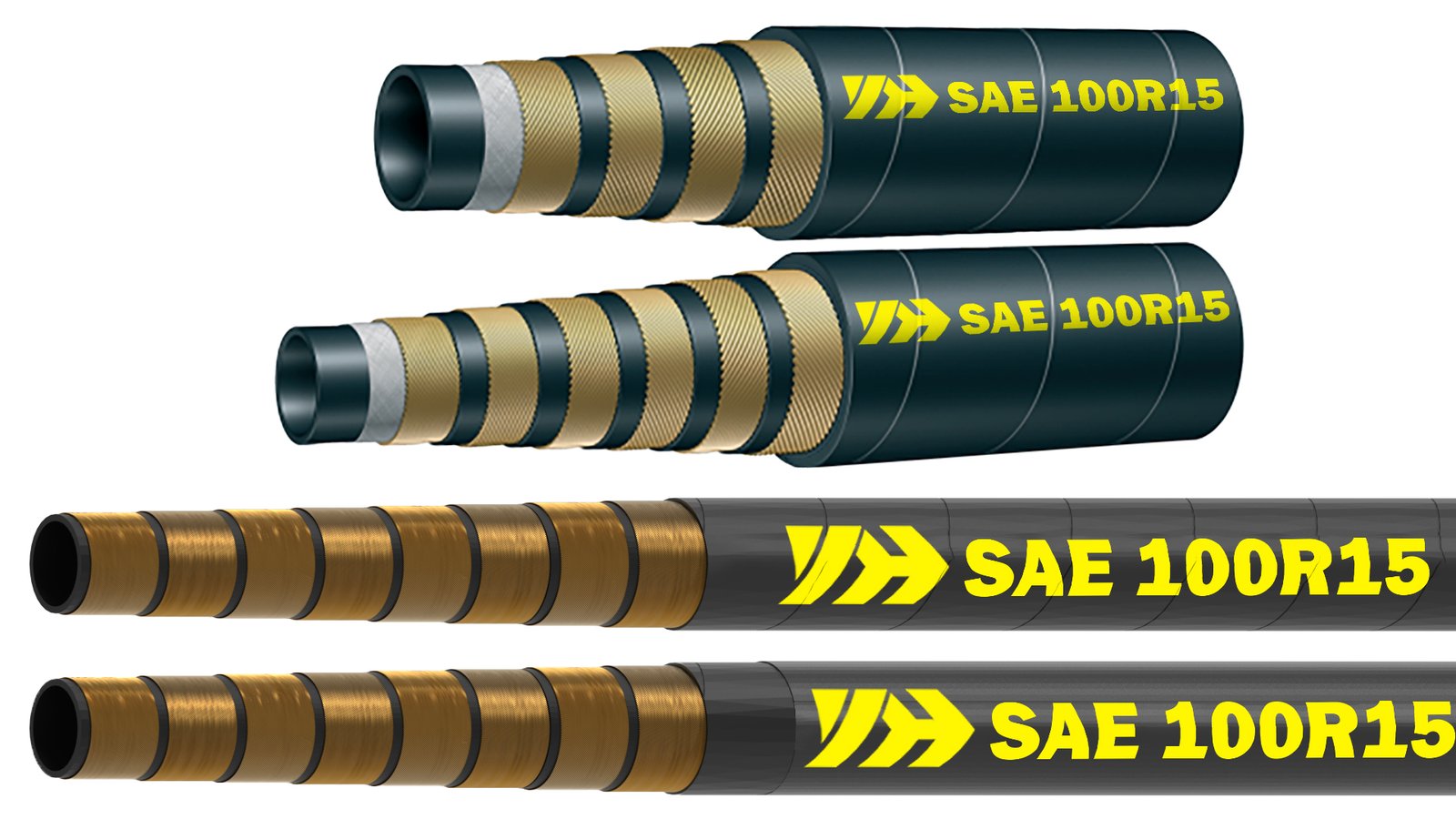

SAE 100R15 steel wire spiral hydraulic hose is engineered for extremely high-pressure hydraulic applications where durability and reliability are paramount. It features an oil-resistant synthetic rubber tube, reinforced with four, six, or eight alternating layers of high-tensile steel wire spiral depending on hose size, and a synthetic rubber cover that is resistant to abrasion, weather, ozone, and flame. With its constant pressure rating across all sizes and superior impulse performance, this hose is ideal for the most demanding hydraulic systems.
Construction:
Tube:
oil-resistant synthetic rubber
Reinforcement:
four or six or eight steel wire spirals
Cover:
oil, water, heat, abrasion, weather, and ozone-resistant synthetic rubber
Temperature Range:
-40°C to +120°C (-40°F to +248°F), intermittent up to -60°C to +160°C (-76°F to +320°F)
Applications:
Suitable for extremely high-pressure hydraulic systems requiring maximum performance, including construction machinery, mining equipment, industrial presses, marine systems, and other heavy-duty applications. Designed to withstand severe environmental and installation conditions, it offers excellent flexibility in compact spaces and is compatible with a wide range of fluids, including petroleum-based oils, mineral oils, vegetable oils, synthetic esters, polyglycols, aqueous emulsions, and water.
Key Features:
• Robust Multi-Spiral Steel Wire: Provides strength, durability, and dimensional stability.
• High-Quality Inner Tube: Oil-resistant synthetic rubber ensures fluid compatibility.
• Durable Outer Cover: Resistant to oil, abrasion, ozone, and environmental exposure.
• Wide Temperature Range: Reliable performance from -40°C to +121°C (-40°F to +250°F).
• Precision Construction: Maintains concentricity for secure connections and smooth flow.
• Long Service Life: Engineered for heavy-duty hydraulic applications.
• Versatile Use: Suitable for construction, mining, agriculture, marine, and industrial hydraulics.
• Custom Assemblies Available: Various fittings and configurations to meet customer requirements.
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-R15-06 | -6 | 10 | 3/8" | 9.3 | 0.37 | 10.1 | 0.40 | none | none | 23.3 | 0.92 | 42 | 420 | 6,090 | 168 | 1,680 | 24,360 | 150 | 5.91 | 0.809 | 0.54 |
| YH-R15-08 | -8 | 12 | 1/2" | 12.3 | 0.48 | 13.5 | 0.53 | none | none | 26.8 | 1.06 | 42 | 420 | 6,090 | 168 | 1,680 | 24,360 | 200 | 7.87 | 1.006 | 0.68 |
| YH-R15-12 | -12 | 19 | 3/4" | 18.6 | 0.73 | 19.8 | 0.78 | none | none | 36.1 | 1.42 | 42 | 420 | 6,090 | 168 | 1,680 | 24,360 | 265 | 10.43 | 1.853 | 1.25 |
| YH-R15-16 | -16 | 25 | 1" | 25.0 | 0.98 | 26.4 | 1.04 | none | none | 42.9 | 1.69 | 42 | 420 | 6,090 | 168 | 1,680 | 24,360 | 330 | 12.99 | 2.907 | 1.95 |
| YH-R15-20 | -20 | 32 | 1-1/4" | 31.4 | 1.24 | 33.0 | 1.30 | none | none | 51.5 | 2.03 | 42 | 420 | 6,090 | 168 | 1,680 | 24,360 | 445 | 17.52 | 4.205 | 2.83 |
| YH-R15-24 | -24 | 38 | 1-1/2" | 37.7 | 1.48 | 39.3 | 1.55 | none | none | 59.6 | 2.35 | 42 | 420 | 6,090 | 168 | 1,680 | 24,360 | 530 | 20.87 | 5.608 | 3.77 |
