Product Description:

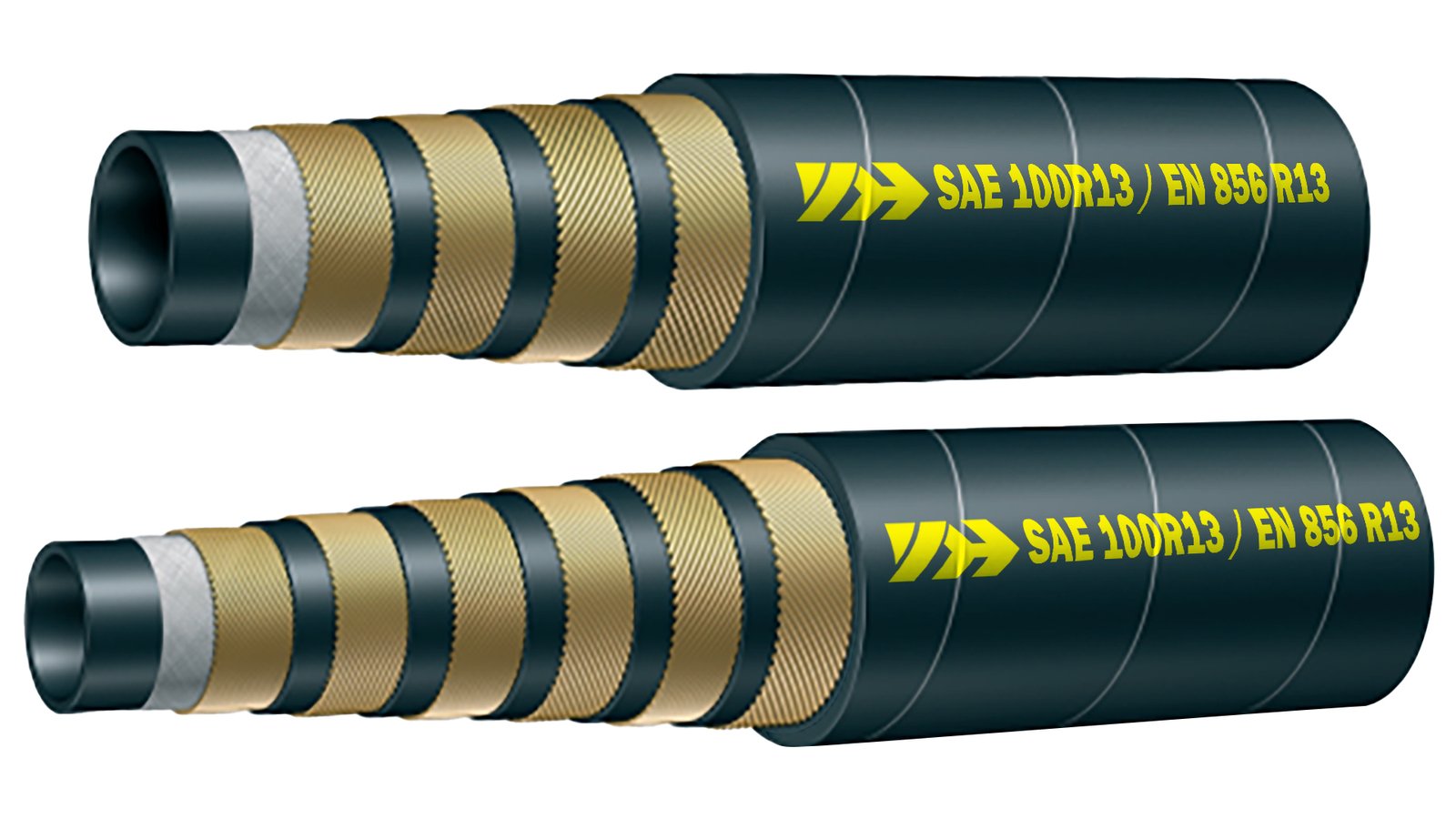

The SAE 100R13 / EN 856 R13 / ISO 3862 Type R13 hydraulic hose is designed for extreme heavy-duty hydraulic applications. It features an oil-resistant synthetic rubber inner tube, multiple spiral layers of heavy steel wire reinforcement wrapped in alternating directions, and a durable, weather-resistant outer cover. Engineered for maximum durability and dimensional stability, this hose delivers long-term performance in the most demanding industrial and mobile hydraulic systems.
Construction:
Tube:
oil-resistant synthetic rubber
Reinforcement:
four or six steel wire spirals
Cover:
oil, water, heat, abrasion, weather, and ozone-resistant synthetic rubber
Temperature Range:
-40°C to +125°C (-40°F to +257°F), intermittent up to -55°C to +160°C (-67°F to +320°F)
Applications:
Suitable for use in heavy-duty hydraulic systems with petroleum-based and water-based fluids.
Common applications include:
• Construction and mining machinery
• Marine hydraulic systems
• Industrial equipment and presses
• Material-handling and lifting systems
• High-performance mobile hydraulics
Key Features:
• Multiple-Spiral Steel Reinforcement: Provides superior strength and durability under extreme conditions.
• High-Quality Inner Tube: Oil-resistant synthetic rubber compatible with multiple hydraulic fluids.
• Durable Cover: Protects against abrasion, ozone, and environmental exposure.
• Wide Temperature Range: Maintains stable performance from -40°C to +121°C (-40°F to +250°F).
• Dimensional Stability: Concentric inner and outer diameters ensure secure connections.
• Long Service Life: Resistant to wear, aging, and deformation in heavy-duty applications.
• Standard Compliance: Fully meets SAE 100R13 and ISO 3862 Type R13 specifications.
• Versatile Applications: Ideal for construction, mining, marine, and industrial hydraulic systems.
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-R13-12 | -12 | 19 | 3/4" | 18.6 | 0.73 | 19.8 | 0.78 | 31.0 | 1.22 | 33.2 | 1.31 | 35 | 350 | 5,070 | 140 | 1,400 | 20,300 | 240 | 9.45 | 1.536 | 1.03 |
| YH-R13-16 | -16 | 25 | 1" | 25.0 | 0.98 | 26.4 | 1.04 | 37.6 | 1.48 | 39.8 | 1.57 | 35 | 350 | 5,070 | 140 | 1,400 | 20,300 | 300 | 11.81 | 2.064 | 1.39 |
| YH-R13-20 | -20 | 32 | 1-1/4" | 31.4 | 1.24 | 33.0 | 1.30 | 48.3 | 1.90 | 51.3 | 2.02 | 35 | 350 | 5,070 | 140 | 1,400 | 20,300 | 420 | 16.54 | 2.467 | 1.66 |
| YH-R13-24 | -24 | 38 | 1-1/2" | 37.7 | 1.48 | 39.3 | 1.55 | 55.8 | 2.20 | 58.8 | 2.31 | 35 | 350 | 5,070 | 140 | 1,400 | 20,300 | 500 | 19.69 | 3.358 | 2.26 |
| YH-R13-32 | -32 | 51 | 2" | 50.4 | 1.98 | 52.0 | 2.05 | 69.5 | 2.74 | 72.7 | 2.86 | 35 | 350 | 5,070 | 140 | 1,400 | 20,300 | 640 | 25.20 | 4.553 | 3.06 |
