Product Description:

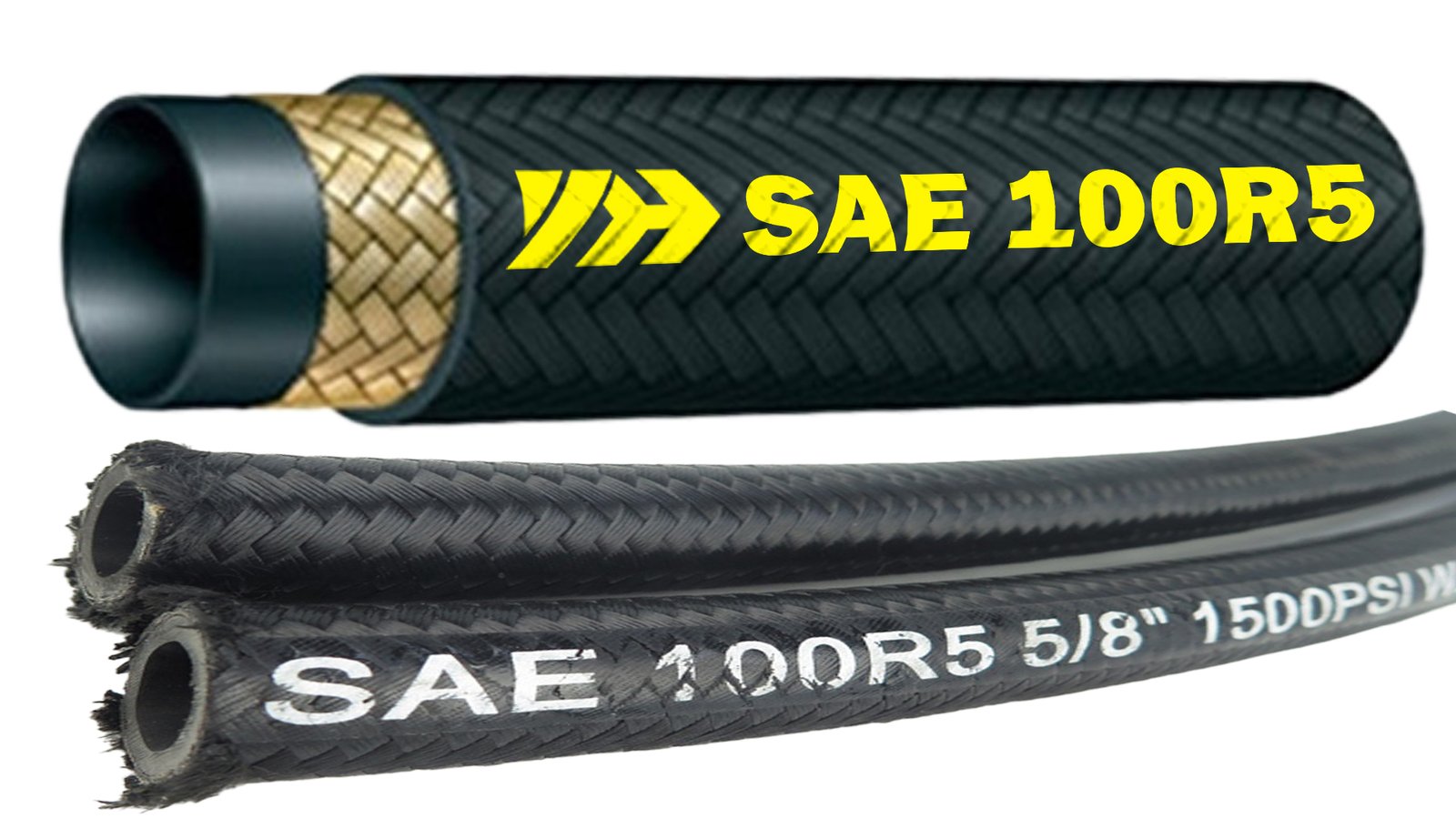

The SAE 100R5 Hydraulic Hose features a robust construction with an oil-resistant synthetic rubber inner tube, a single steel wire braid reinforcement, and a protective textile outer cover. This design combines flexibility, reliability, and a professional appearance suitable for a wide range of hydraulic and transportation applications. The outer fabric layer enhances abrasion resistance while maintaining excellent handling characteristics.
Construction:
Tube:
oil & heat resistant synthetic rubber
Reinforcement:
one steel wire braid
Cover:
oil, water, abrasion, weather, ozone, and heat-resistant synthetic rubber plus a protective textile braid
Temperature Range:
-40°C to +100°C (-40°F to +212°F), intermittent up to +125°C (+257°F)
Applications:
Designed for use with petroleum- and water-based hydraulic fluids in hydraulic and air brake systems.
Commonly used in:
• Trucks and buses
• Industrial and mobile equipment
• Construction and agricultural machinery
• Air brake and hydraulic return lines
Key Features:
• Single steel wire braid reinforcement
• Textile fiber cover for durability and protection
• Excellent flexibility and installation ease
• Oil-, abrasion-, and mildew-resistant
• Suitable for medium-pressure hydraulic and air brake systems
• Meets SAE 100R5 standard
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-R5-04 | -4 | 6 | 1/4” | 4.8 | 0.19 | 5.5 | 0.22 | 12.7 | 0.50 | 13.7 | 0.54 | 21.0 | 210 | 3,040 | 84.0 | 840 | 12,180 | 75 | 2.95 | 0.242 | 0.16 |
| YH-R5-05 | -5 | 8 | 5/16” | 6.4 | 0.25 | 7.2 | 0.28 | 14.3 | 0.56 | 15.3 | 0.60 | 21.0 | 210 | 3,040 | 84.0 | 840 | 12,180 | 85 | 3.35 | 0.291 | 0.20 |
| YH-R5-06 | -6 | 10 | 3/8” | 7.9 | 0.31 | 8.7 | 0.34 | 16.7 | 0.66 | 17.6 | 0.69 | 15.7 | 157 | 2,270 | 62.8 | 628 | 9,100 | 100 | 3.94 | 0.360 | 0.24 |
| YH-R5-08 | -8 | 12 | 1/2” | 10.3 | 0.41 | 11.1 | 0.44 | 18.9 | 0.74 | 20.0 | 0.79 | 14.0 | 140 | 2,030 | 56.0 | 560 | 8,120 | 115 | 4.53 | 0.483 | 0.32 |
| YH-R5-10 | -10 | 16 | 5/8” | 12.7 | 0.50 | 13.7 | 0.54 | 22.8 | 0.90 | 24.0 | 0.94 | 12.2 | 122 | 1,760 | 48.8 | 488 | 7,070 | 140 | 5.51 | 0.554 | 0.37 |
| YH-R5-12 | -12 | 19 | 3/4” | 15.9 | 0.63 | 17.0 | 0.67 | 26.8 | 1.06 | 28.0 | 1.10 | 10.5 | 105 | 1,520 | 42.0 | 420 | 6,090 | 165 | 6.50 | 0.652 | 0.44 |
| YH-R5-16 | -16 | 25 | 1” | 22.2 | 0.87 | 23.3 | 0.92 | 30.6 | 1.20 | 32.2 | 1.27 | 5.6 | 56 | 810 | 22.4 | 224 | 3,240 | 185 | 7.28 | 0.695 | 0.47 |
| YH-R5-20 | -20 | 32 | 1-1/4” | 28.6 | 1.13 | 29.8 | 1.17 | 37.3 | 1.47 | 38.9 | 1.53 | 4.3 | 43 | 620 | 17.2 | 172 | 2,490 | 230 | 9.06 | 0.846 | 0.57 |
| YH-R5-24 | -24 | 38 | 1-1/2” | 34.9 | 1.37 | 36.1 | 1.42 | 43.7 | 1.72 | 45.2 | 1.78 | 3.5 | 35 | 500 | 14.0 | 140 | 2,030 | 265 | 10.43 | 1.033 | 0.69 |
| YH-R5-32 | -32 | 51 | 2” | 46.0 | 1.81 | 47.2 | 1.86 | 55.2 | 2.17 | 57.6 | 2.27 | 2.4 | 24 | 340 | 9.6 | 96 | 1,390 | 335 | 13.19 | 1.267 | 0.85 |
| YH-R5-40 | -40 | 63 | 2-1/2” | 60.3 | 2.37 | 61.9 | 2.44 | 71.8 | 2.83 | 74.2 | 2.92 | 2.4 | 24 | 340 | 9.6 | 96 | 1,390 | 610 | 24.02 | 2.009 | 1.35 |
| YH-R5-48 | -48 | 76 | 3” | 76.2 | 3.00 | 77.8 | 3.06 | 89.3 | 3.52 | 91.7 | 3.61 | 1.4 | 14 | 200 | 5.6 | 56 | 810 | 840 | 33.07 | 3.064 | 2.06 |
