Product Description:

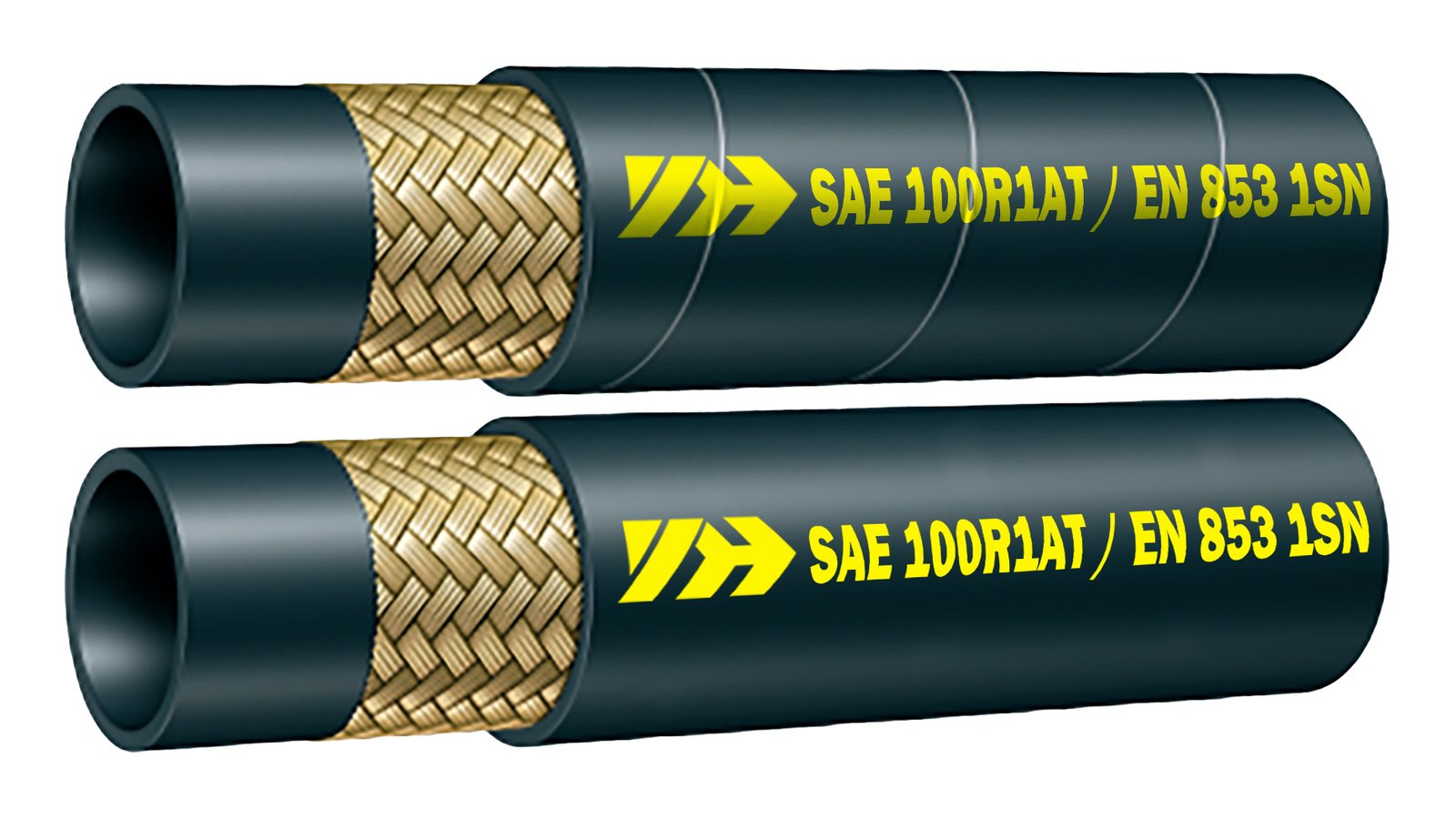

The SAE 100R1 / EN 853 1SN hydraulic hose is engineered for reliable performance in demanding hydraulic systems. It features an oil-resistant synthetic rubber inner tube, a single layer of high-tensile steel wire braid reinforcement, and a durable, weather-resistant outer cover. This hose provides exceptional flexibility and long service life under challenging working conditions, ensuring smooth operation and secure connections in various hydraulic applications.
Construction:
Tube:
oil-resistant synthetic rubber.
Reinforcement:
one steel wire braid
Cover:
oil, water, abrasion, weather, ozone and heat-resistant synthetic rubber.
Temperature Range:
-40°C to +100°C (-40°F to +212°F), intermittent up to +125°C (+257°F).
Applications:
Designed for the transmission of petroleum-based and water-based hydraulic fluids in both mobile and industrial systems.
Commonly used in:
• Construction and mining equipment
• Agricultural and forestry machinery
• Material-handling and lifting systems
• Oilfield and marine hydraulics
• General hydraulic installations
Key Features:
- Durable Construction: Reinforced with one layer of high-tensile steel wire braid for strength and reliability.
- Excellent Flexibility: Compact design allows easy routing and installation in limited spaces.
- Temperature Range: Performs consistently from -40°C to +100°C (-40°F to +212°F) with petroleum-based fluids.
- Oil & Weather Resistant: Outer cover provides superior protection against abrasion, ozone, and aging.
- Tested for Reliability: Proven performance through rigorous impulse and leakage tests.
- Standard Compliance: Fully meets SAE 100R1AT and EN 853 1SN specifications for assured quality and compatibility.
- Custom Assemblies Available: Supplied with various fittings and coupling options to match customer requirements.
TECHNICAL DATA
| Part Number |  Inside Diameter |  Outside Diameter |  Max Working Pressure |  Min Burst Pressure |  Min Bend Radius |  Approx. Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dash | DN | inch | Min ID | Max ID | Min OD | Max OD | MPa | bar | psi | MPa | bar | psi | mm | inch | kg/m | lb/ft | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||||||||||
| YH-R1-03 | -3 | 5 | 3/16” | 4.6 | 0.18 | 5.4 | 0.21 | none | none | 12.5 | 0.49 | 25.0 | 250 | 3,620 | 100 | 1,000 | 14,500 | 90 | 3.54 | 0.210 | 0.14 |
| YH-R1-04 | -4 | 6 | 1/4” | 6.2 | 0.24 | 7.0 | 0.28 | none | none | 14.1 | 0.56 | 22.5 | 225 | 3,260 | 90 | 900 | 13,050 | 100 | 3.94 | 0.215 | 0.14 |
| YH-R1-05 | -5 | 8 | 5/16” | 7.7 | 0.30 | 8.5 | 0.33 | none | none | 15.7 | 0.62 | 21.5 | 215 | 3,110 | 86 | 860 | 12,470 | 115 | 4.53 | 0.260 | 0.17 |
| YH-R1-06 | -6 | 10 | 3/8” | 9.3 | 0.37 | 10.1 | 0.40 | none | none | 18.1 | 0.71 | 18.0 | 180 | 2,610 | 72 | 720 | 10,440 | 125 | 4.92 | 0.320 | 0.22 |
| YH-R1-08 | -8 | 12 | 1/2” | 12.3 | 0.48 | 13.5 | 0.53 | none | none | 21.5 | 0.85 | 16.0 | 160 | 2,320 | 64 | 640 | 9,280 | 180 | 7.09 | 0.400 | 0.27 |
| YH-R1-10 | -10 | 16 | 5/8” | 15.5 | 0.61 | 16.7 | 0.66 | none | none | 24.7 | 0.97 | 13.0 | 130 | 1,880 | 52 | 520 | 7,540 | 205 | 8.07 | 0.480 | 0.32 |
| YH-R1-12 | -12 | 19 | 3/4” | 18.6 | 0.73 | 19.8 | 0.78 | none | none | 28.6 | 1.13 | 10.5 | 105 | 1,520 | 42 | 420 | 6,090 | 240 | 9.45 | 0.600 | 0.40 |
| YH-R1-16 | -16 | 25 | 1” | 25.0 | 0.98 | 26.4 | 1.04 | none | none | 36.6 | 1.44 | 8.7 | 87 | 1,260 | 34.8 | 348 | 5,040 | 300 | 11.81 | 0.910 | 0.61 |
| YH-R1-20 | -20 | 32 | 1-1/4” | 31.4 | 1.24 | 33.0 | 1.30 | none | none | 44.8 | 1.76 | 6.2 | 62 | 890 | 24.8 | 248 | 3,590 | 420 | 16.54 | 1.243 | 0.84 |
| YH-R1-24 | -24 | 38 | 1-1/2” | 37.7 | 1.48 | 39.3 | 1.55 | none | none | 52.0 | 2.05 | 5.0 | 50 | 720 | 20 | 200 | 2,900 | 500 | 19.69 | 1.450 | 0.97 |
| YH-R1-32 | -32 | 51 | 2” | 50.4 | 1.98 | 52.0 | 2.05 | none | none | 65.9 | 2.59 | 4.0 | 40 | 580 | 16 | 160 | 2,320 | 630 | 24.80 | 2.050 | 1.38 |
